Multi Protocol Boards

The EXC-4000 carrier board series was developed to meet the needs of avionic testers for multi-protocol integrated, digital bus testing. Modules may be selected out of a growing list which currently includes MIL-STD-1553/1760, MMSI, H009, ARINC-429, ARINC-708/453, Serial (232/422/485), Discrete and CAN bus. Additionally, an IRIG B decoder implements a global time stamp relative to the IRIG B pulses. The need for higher density, different protocols, and multi-channel on one integrated test card has made the EXC-4000 series very successful.

Unet2

The EXC-Unet2 is a multi-protocol test and simulation adapter for USB or Ethernet equipped computers

2000PCIe

The EXC-2000PCIe is a multi-protocol test and simulation board for PCI Express based computers.

2000PCI

The EXC-2000PCI is a cost effective multi-protocol test and simulation board for PCI computers.

PCI Express

The EXC-4000PCIe/xx and EXC-8000PCIe/xx boards make up an advanced test and simulation family of boards for the PCI Express bus

4000PCI

The EXC-4000PCI is a multi-protocol test and simulation board for PCI computers.

4000cPCI

The EXC-4000cPCI is a multi-protocol test and simulation board for Compact PCI computers.

8000PCIe104

The EXC-8000PCIe104 is a multi-protocol test and simulation board for PCI/104-Express systems.

4000P104plus

The EXC-4000P104Plus is a multi-protocol test and simulation board for PC/104 Plus systems.

4000VME/VXI

The EXC-4000VME/VXI is a multi-protocol test and simulation board for VME and VXI computers.

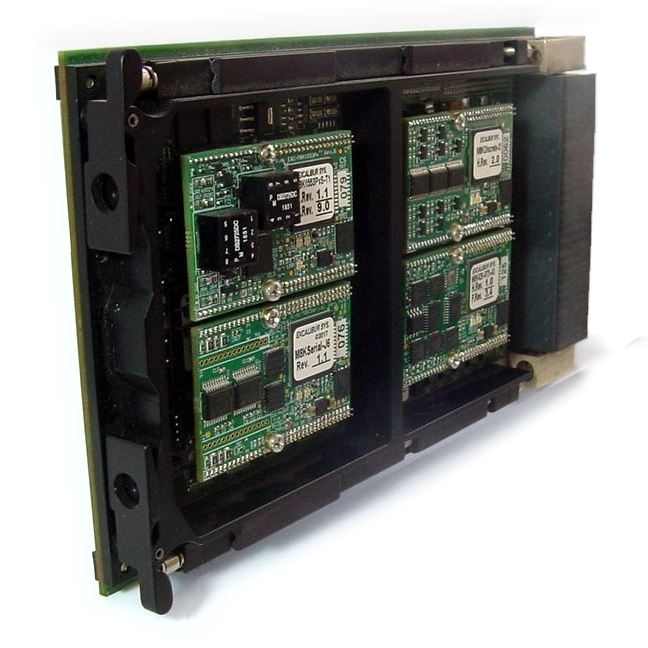

4500ccVPX

The EXC-4500ccVPX is part of the 4000 family of multiprotocol carrier boards. This conduction cooled VPX interface board has a PCI Express host interface and can support up to four independent modules: three onboard modules and one removable module.
