ARINC 429

ARINC 429 is one of the most prevalent specifications in use today for communicating between avionics components on commercial aircraft. It was created in response to lessons learned from the use of older equipment specified by ARINC 419.  If you are new to ARINC-429 you may wish to check out our tutorial below.

Click for ARINC-429 Products

Introduction to ARINC-429:

Excalibur Systems RTx family of products all support multiple channels of ARINC 429. Channels are software selectable to transmit or receive. Both High Speed – 100Khz and low speed - 12.5 Khz  are supported as well as a variable speed for interacting with ARINC 419 compatible systems.

There are several modes that can be used for transmit channels that determine the timing method with which the data will be transmitted. Interblock Gap Mode transmits labels sequentially with gaps between labels in the order selected by the user. Frequency mode transmits labels based on a selected frequency – that is every n milliseconds. Multiple messages can be defined with different frequencies and the module will see to it that proper timing is maintained.

Time Tag mode enables the retransmission of a previously recoded session. The data, timing and errors of the recorded session will be precisely reproduced enabling one off situations to be reproduced. This can lead to a better understanding of the scenario and aid in debugging efforts.

 Receive message have a 32 bit timetag associated with each label. Many of the modules can be attached to external Irig signals providing a timetag with a time of day format precise to the nearest microsecond.

Each channel may be received in its own buffer or all receive channels may be received in a single merged buffer. In either case, timetags of data received over all channels are based on the same clock aiding in the understanding of relationships between data received on each channel.

A special mode receives on one channel and retransmits on a paired channel with minor adjustments to the label or data such as changing the SDI or the label.

The same API can be used for the entire RTx family including the USB / Ethernet controlled UNET, miniPCI and miniPCIe and cPCI, PCI and PCIe.

ARINC 429 Products:

ARINC-429 multi-channel adapter for USB or Ethernet equipped computers

USB/Ethernet

The DAS-429UNET/RTx is an ARINC-429 multi-channel adapter for USB or Ethernet equipped computers

Rugged Ethernet

The ES-9810/A1 is an advanced ARINC-429 adapter for Ethernet equipped computers in Rugged Environments
ARINC-429 test and simulation family of boards for the PCI Express bus

PCI Express

The EXC-4000PCIe/xx and EXC-8000PCIe/xx boards together with the 429Rtx modules make up an advanced ARINC-429 test and simulation family of boards for the PCI Express bus
ARINC-429 test and simulation board for the PCI bus

PCI

The EXC-4000PCI is an advanced Multi Protocol card and together with the M4K429RTx module gives you a ARINC-429 test and simulation board for the PCI bus.
Test and simulation board for Compact PCI systems

cPCI

The EXC-4000cPCI/xx and EXC-8000cPCI/xx boards together with the 429 M4K or M8K modules make up an advanced ARINC-429 test and simulation board for Compact PCI systems
Mini PCIe ARINC 429 multichannel interface cards

Mini PCIe

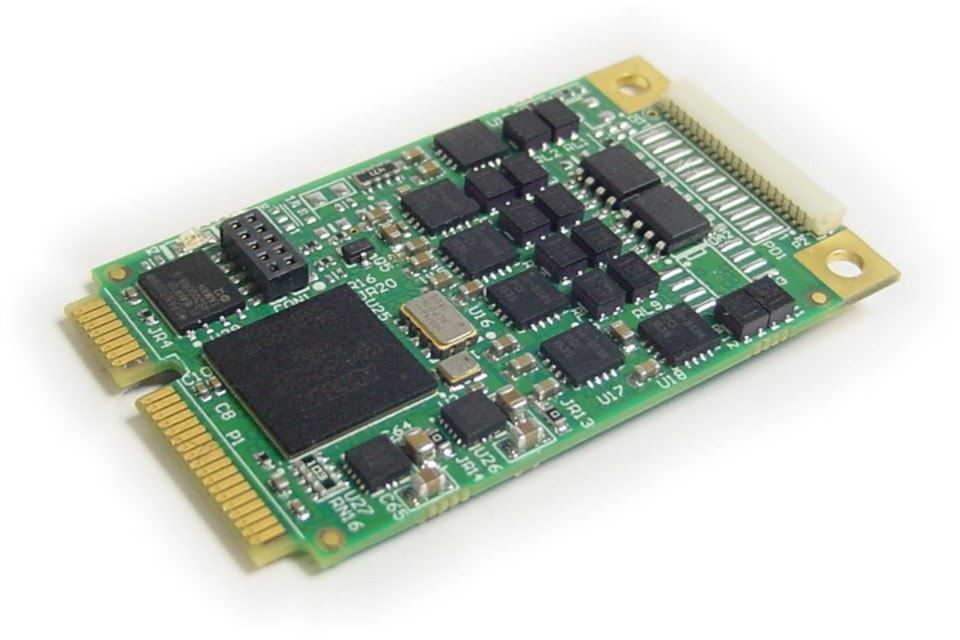

The DAS-429mPCIe/RT10, DAS-429mPCIe/RT6D4 and DAS-429mPCIe/RT8-717 are ARINC 429, multichannel interface cards. The DAS-429mPCIe/RT6D4 has additional Discrete I/Os and the DAS-429mPCIe/RT8-717 has additional ARINC 717 receive and transmit channels.
ARINC-429 test and simulation board for PCI/104-Express systems

PCI/104-Express

The EXC-8000PCIe104/xx together with the M8K429 module is an advanced ARINC-429 test and simulation board for PCI/104-Express systems
ARINC-429 test and simulation board for PC/104 Plus computers

PC/104 Plus

The EXC-4000P104Plus is an advanced Multi Protocol card and together with the M4K429RTx module gives you a ARINC-429 test and simulation board for PC/104 Plus computers.
Arinc-429 test and simulation card for PMC (PCI Mezzanine Card) compatible hosts

PMC

The DAS-429PMC/RTx is a multi-channel (up to 20) Arinc-429 test and simulation card for PMC (PCI Mezzanine Card) compatible hosts.
Arinc-429 test and simulation card for PMC (PCI Mezzanine Card) compatible hosts

ccPMC

The DAS-429ccPMC/RTx is a conduction cooled multi-channel (up to 20) Arinc-429 test and simulation card for PMC (PCI Mezzanine Card) compatible hosts.
Test and simulation board for the VME or VXI systems

VME / VXI

The EXC-4000VME & EXC-4000VXI are an advanced Multi Protocol card and together with the M4K429RTx module gives you a ARINC-429 test and simulation board for the VME or VXI systems.
ARINC-429 test and simulation board for VPX compatible systems

ccVPX

The EXC-4500VPX is an advanced Multi Protocol conduction cooled card and together with the M4K429RTx module gives you a ARINC-429 test and simulation board for VPX compatible systems.
ARINC-429 multi-channel, interface cards for Express Card systems

Express Card

The DAS-429ExCARD/RT10 and the DAS-429ExCARD/RT6D4 are ARINC-429 multi-channel, interface cards for Express Card systems.
ARINC-429 multi-channel, interface cards for PCMCIA systems

PCMCIA

The DAS-429PCMCIA/RT10 and the DAS-429PCMCIA/RT6D4 are ARINC-429 multi-channel, interface cards for PCMCIA systems.
Multi Protocol 4000 Board

Multi Protocol Boards

The EXC-4000 & EXC-8000 carrier board series was developed to meet the needs of avionic testers for multi-protocol integrated, digital bus testing. Modules may be selected out of a growing list which currently includes MIL-STD-1553/1760, MMSI, H009, ARINC-429, ARINC-708/453, Serial (232/422/485), Discrete and CAN bus.
