MIL-STD-1553

MIL-STD-1553 is a military standard published by the United States Department of Defense that defines the mechanical, electrical, and functional characteristics of a serial data bus.  If you are new to MIL STD 1553 you may wish to check out our tutorials below.

Click for MIL-STD-1553 Products

Overview - Part 1 of a 4 part introduction to MIL-STD-1553:



Click for continuation of MIL-STD-1553 tutorials >>

Excalibur System’s Px family of MIL STD 1553 boards and modules simulate Bus Controller, Remote Terminal and Bus Monitor operation. The PxS operates as a single RT and passes all RT validation tests for message formats. The Px modules support multiple RT operation as well as error injection capability. RT mode supports double and multibuffering to ensure data integrity and to provide additional time to the application to onload and offload data without taxing the host system.

As a Bus Controller, the Px modules allows you to define Bus Lists which will then be transmitted according to the requested timing by the module so that your application need concern itself only with updating data and not with satisfying the timing requirements of the bus. Error injection capabilities in BC mode enable exhaustive testing of Remote Terminals and simplify the integration and debugging of entire systems.

Our Bus Monitor provides precise timetags with each message. Many of the modules can be attached to external Irig signals providing a timetag with a time of day format precise to the nearest microsecond.

Special features such as SRQ processing and asynchronous message transmission in Bus Controller mode; mode code handling in RT mode and message filtering in Bus Monitor mode make these modules flexible and powerful.

The same API can be used for the entire Px family including the USB/Ethernet controlled UNET, miniPCI and miniPCIe and cPCI, PCI and PCIe. The API is designed for ease of use and is accompanied by many demo programs to help you jump start your application.

Systems that support Direct Memory Access such as PCIe systems will automatically make use of it without user involvement.

An array of accessories are available to complement our boards such as cables, bus couplers, terminators, bus splitters and extenders to help you outfit your lab and provide the most up to date and efficient environment to get your project working.

MIL-STD-1553 Products:



mil-std-1553 usb/ethernet

USB/Ethernet

The EXC-1553UNET/Px is an advanced MIL-STD-1553 adapter for USB or Ethernet equipped computers

Rugged Ethernet

The ES-1553RUNET/Px(S) is an advanced MIL-STD-1553 adapter for Ethernet equipped computers in Rugged Environments

PCI Express

The EXC-4000PCIe/xx and EXC-8000PCIe/xx boards together with the 1553 modules make up an advanced MIL-STD-1553 test and simulation family of boards for the PCI Express bus
MIL-STD-1553 test and simulation board for the PCI bus

PCI

The EXC-4000PCI is an advanced Multi Protocol card and together with the M4K1553Px(S) module gives you a MIL-STD-1553 test and simulation board for the PCI bus.

cPCI

The EXC-4000cPCI/xx and EXC-8000cPCI/xx boards together with the 1553 M4K or M8K modules make up an advanced MIL-STD-1553 test and simulation board for Compact PCI systems
single-channel, memory-mapped MIL-STD-1553 interface card

Mini PCIe

The EXC-1553mPCIe/P1 is an intelligent, single-channel, memory-mapped MIL-STD-1553 interface card. It complies with the PCI ExpressTM Mini Card standard.
Advanced MIL-STD-1553 test and simulation board for PCI/104-Express systems

PCI/104-Express

The EXC-8000PCIe104/xx together with the M8K1553Px or M8K1553PxS module is an advanced MIL-STD-1553 test and simulation board for PCI/104-Express systems
EXC-4000P104Plus/xx card & M4K1553Px(S) module - test and simulation board for PC/104 Plus systems

PC/104 Plus

The EXC-4000P104Plus/xx together with the M4K1553Px or M4K1553PxS module is an advanced MIL-STD-1553 test and simulation board for PC/104 Plus systems

ccVPX

The EXC-8000ccVPX is an advanced conduction cooled Multi Protocol card and together with the M8K1553Px or 1553PxS module gives you a MIL-STD-1553 test and simulation board for VPX compatible systems.
1553 interface boards for convection or conduction cooled PCI Mezzanine Card compatible computers.

PMC & ccPMC

The EXC-1553(cc)PMC/Px or EXC-1553(cc)PMC/PxS are multi-channel (up to four) MIL-STD 1553 interface boards for convection or conduction cooled PCI Mezzanine Card compatible computers.
Test and simulation board for VME and VXI host computers

VME / VXI

The EXC-4000VME/xx together with the M4K1553Px or M4K1553PxS module is an advanced MIL-STD-1553 test and simulation board for VME and VXI host computers.
MIL-STD-1553 interface board for conduction cooled VME systems

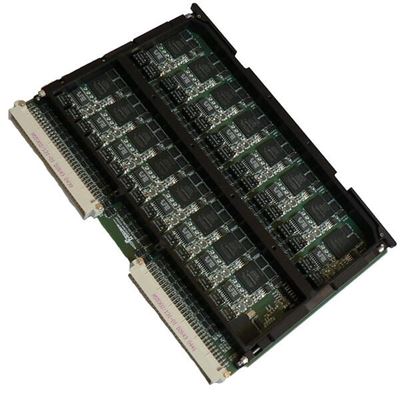

ccVME 16 channels

The EXC-1553ccVME/Px(S) is a multi-channel (up to sixteen) MIL-STD-1553 interface board for conduction cooled VME systems.
Advanced MIL-STD-1553 interface cards for express card equipped computers

Express Card

The EXC-1553ExCard/Px and EXC-1553ExCard/PxS are advanced (up to 2 channel) MIL-STD-1553 interface cards for Express Card equipped computers
MIL-STD-1553 interface cards for PCMCIA (Type II) equipped computers

PCMCIA

The EXC-1553PCMCIA/Px and EXC-1553PCMCIA/PxS are advanced (up to 2 channel) MIL-STD-1553 interface cards for PCMCIA (Type II) equipped computers
Multi Protocol 4000 Board

Multi Protocol Boards

The EXC-4000 & EXC-8000 carrier board series was developed to meet the needs of avionic testers for multi-protocol integrated, digital bus testing. Modules may be selected out of a growing list which currently includes MIL-STD-1553/1760, MMSI, H009, ARINC-429, ARINC-708/453, Serial (232/422/485), Discrete and CAN bus.
