The ARINC 717 bus defines the communication between DFDAU(Digital Flight Data Acquisition Unit) and the DFDR(Digital Flight Data Recorder). The Data over the bus is a collection of all various data to be recorded.

The Data is organized in 4 subframes each 1 second long, which comprise one frame of 4 seconds. Each subframe contains 64 (or 128 or 256) words of 12-bit each. Each subframe starts with a unique synch word and these 4 words are known as Barker Code and are used to synchronize on new frame. The electrical signals of this bus are +/-5V differential pair Harvard Bi-Phase coded. The various data words are continuously transmitted in their chronological order and can be recognized by their predefined relative location in frame. If you are new to ARINC-717 you may wish to check out our tutorial below.

Click for ARINC-717 Products

Introduction to ARINC-717:



Arinc-717 Products:

USB/Ethernet
USB/Ethernet

The DAS-429UNET/RT8-717 is an ARINC-429 & ARINC-717 multi-channel adapter for USB or Ethernet equipped computers
PCI EXPRESS
PCI EXPRESS

The PCI Express family of advanced Multi Protocol cards that supports 32-bit modules and together with the 717 module gives you a ARINC-717 test and simulation board for the PCI Express bus.
MACC Protocol convertor
MACC Protocol convertor

The MACCII is an advanced Multi Protocol convertor and together with the M8K717 module it gives you an option to convert ARINC-717 to a protocol of your choice.
ccXMC
ccXMC

The EXC-8000ccXMC is an advanced conduction cooled Multi Protocol card and together with the M8K717 module gives you a ARINC 717 test and simulation board for XMC compatible systems.
ccVPX
ccVPX

The EXC-8000ccVPX is an advanced conduction cooled Multi Protocol card and together with the M8K717 module gives you a ARINC-717 test and simulation board for VPX compatible systems.
cPCI
cPCI

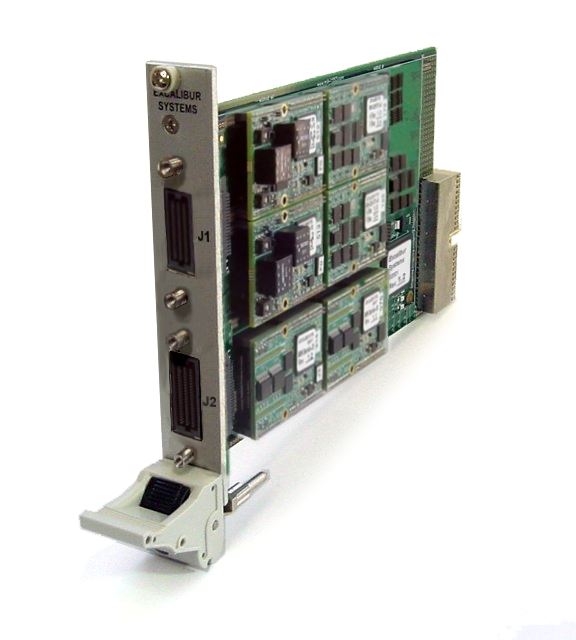

The Compact PCI family of advanced Multi Protocol boards together with the 717 modules make up an advanced ARINC-717 test and simulation board for Compact PCI systems.
Mini PCIe
Mini PCIe

The DAS-429mPCIe/RT8-717 is a ARINC 429, multichannel interface card with additional ARINC 717 receive and transmit channels. The cards small size and suitability for Mini Card compatible computers make it a complete solution for developing, testing, integrating ARINC 429 and ARINC 717 interfaces and for performing system simulation both in the lab and in the field.
PCI/104-Express
PCI/104-Express

The EXC-8000PCIe104/xx together with the M8K717 module is an advanced ARINC-717 test and simulation board for PCI/104-Express systems
