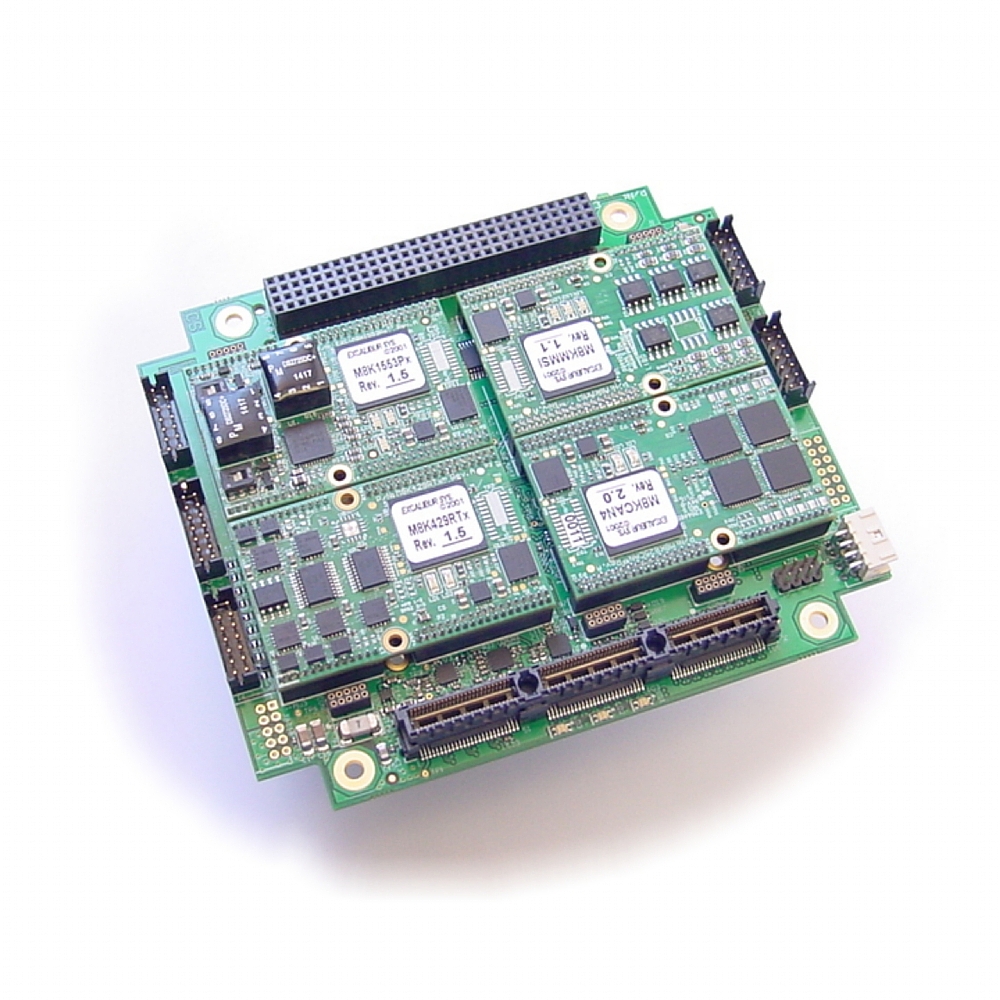

The EXC-8000PCIe104/xx card for PCI/104-Express systems supports up to four dual redundant 1760 channels using the M8K1553Px(S)-1760 module and is compatible with all common variations of MIL-STD-1760 (A,B). In addition, Checksum, SRQ bit and Header Words are supported on each channel.

Multi Function:

Each channel using the M8K1553Px-1760 module operates simultaneously as a Bus controller and/or multiple (up to 32) Remote Terminals, or as a Triggerable Bus Monitor. In addition, error injection (BC and RT modes) and error detection (all modes) are supported on each channel.

Single Function:

Each channel using the M8K1553PxS-1760 (RT validated) module operates either as a Bus Controller, Remote Terminal, or Bus Monitor.

The EXC-8000PCIe104/xx is supplied with C drivers (including source code), Merlin+ Windows software and may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application. Mating connector provided for I/O connection.

Please see multi protocol 8000 modules for additional information on protocols that can be added to this card.

Please see our Dragon rugged PC/104 system for a complete PC/104 solution.



Ordering Information:

Part Number Description
EXC-8000PCIe104/xx  Multi-protocol interface for PCI/104-Express compatible systems.
Lx   M8K1553Px-1760        MIL-STD-1553 interface module: supports BC, multiple RTs, BC/Concurrent-RT and BM modes with MIL-STD-1760 option.
Hx  M8K1553PxS-1760 MIL-STD-1553 interface module: supports BC, RT or BM modes with MIL-STD-1760 option. (RT Validated-Single Function)


Note:
“xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-R" rugged configuration

"-001" added to the end of the part number specifies conformal coating option.
