EXC-4000VME/xx, EXC-4000VXI/xx card & M4KSerial module

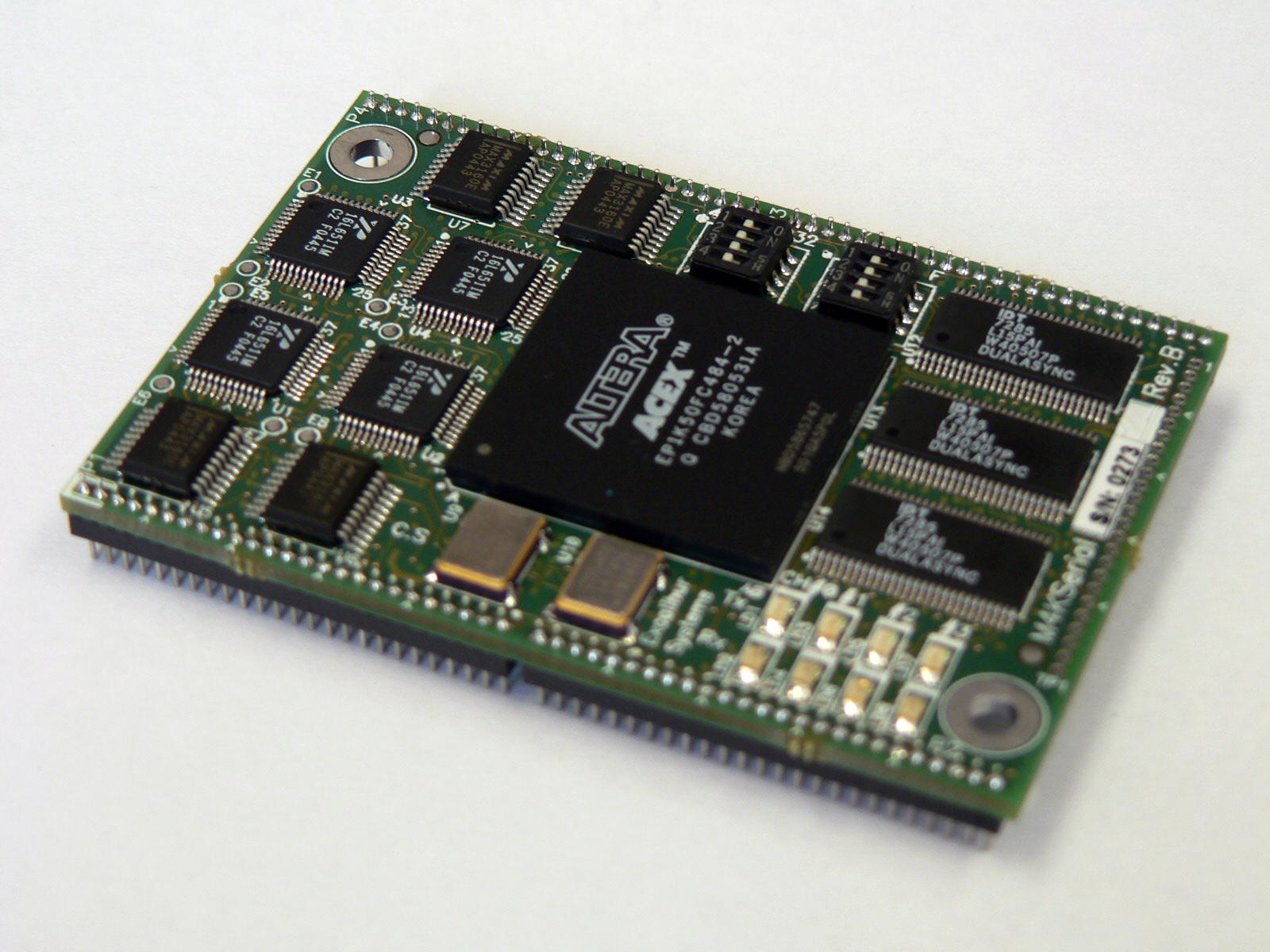

The EXC-4000VME/xx and EXC-4000VXI/xx cards for VME & VXI systems supports up to thirty two Serial channels using the M4KSerial module. This module supports up to four independent channels of serial communications, each of which can be selected as RS-485, RS-422 or RS-232 and has a programmable baud rate of up to 1Mbps. The module operates independently of the host computer, reducing the need for host intervention.

The Serial module is based on the Exar XR16L651 Universal Asynchronous Receiver and Transmitter (UART). The device is compatible to industry standard 16C450, 16C550, ST16C580 and ST16C650A UARTs.

Each of the M4KSerial’s four channels contain a transmit FIFO capable of holding up to 8000 bytes and a receive FIFO capable of holding either 16000 input bytes or 3200 bytes with a 32-bit time tag associated with each byte. These large buffers allow application code to transfer large quantities of data with a single non-blocking subroutine call. The 32-bit time tag on receive channels is useful for synchronizing serial data with data from other modules on the 4000 board or on other interface boards.

The EXC-4000VME/xx & EXC-4000VXI/xx are supplied with C drivers, including source code. Mating connector provided for I/O connection.
Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.

NOTE: The M4KSerial module is now a Legacy product. All new projects should use the M4KSerialPlus module (these modules are not compatible)  Click here for more details


Ordering Information:

Part Number  Description

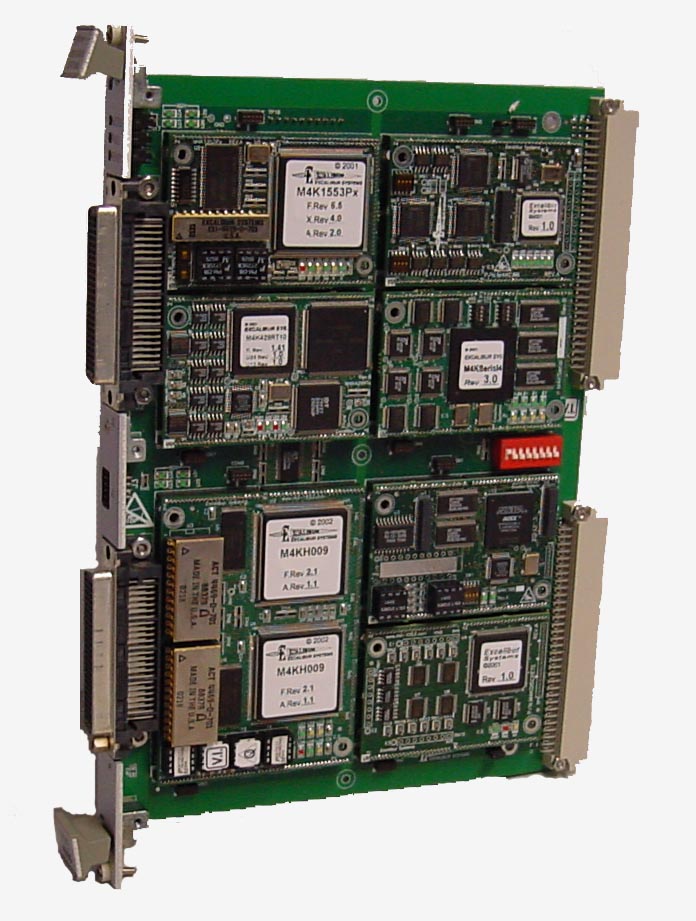

EXC-4000VME/xx Multi-protocol interface for VME compatible systems B-size board.

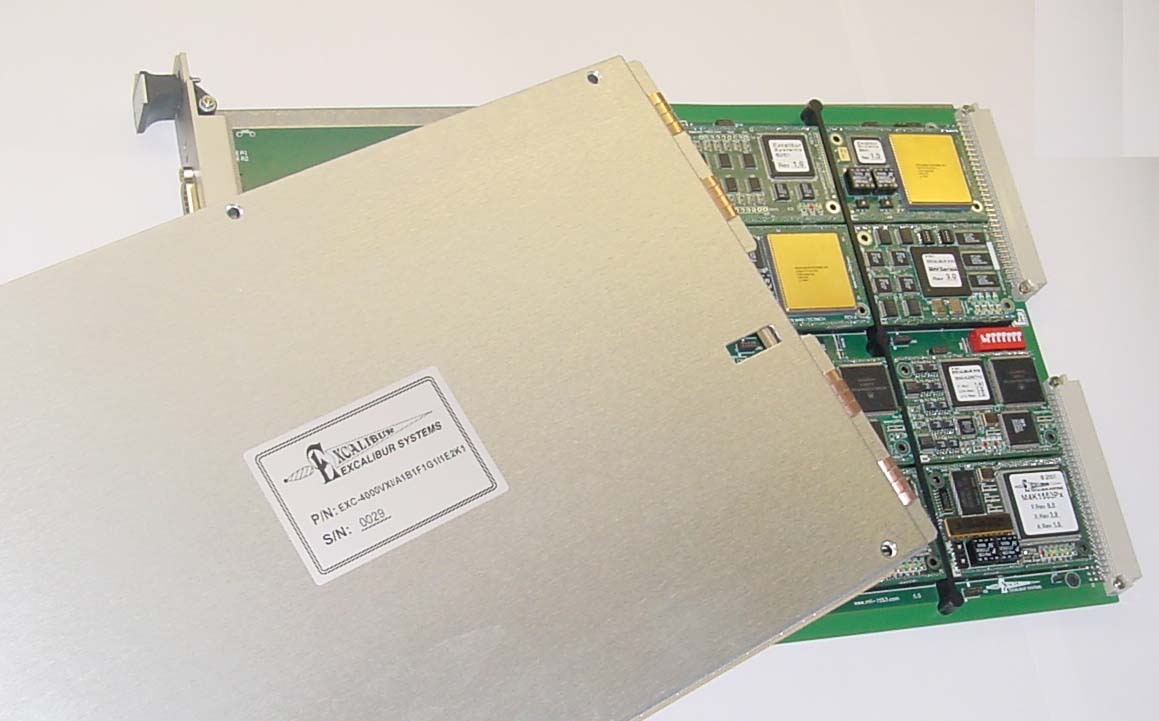

EXC-4000VXI/xx Multi-protocol interface for VXI compatible systems C-size board, complete with shield.
JJx   M4KSerialPlus2 RS-232/422/485 interface module - 10Mbps - Supports 2 channels.
KKx   M4KSerialPlus4 RS-232/422/485 interface module - 10Mbps - Supports 4 channels.
X4K-xx    50cm cable adapter for EXC-4000 card [optional]

"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
