*** End Of Life ***
*Please see attached PCN*

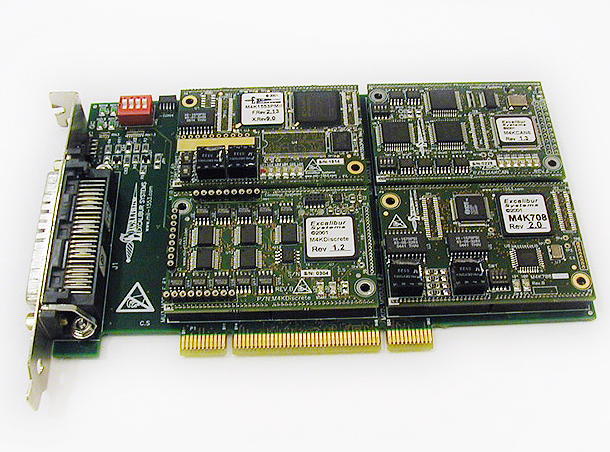

The EXC-4000PCI/xx card for the PCI bus supports up to four dual redundant MIL-STD-1760 channels using the M4K1553Px(S)-1760 module and is compatible with all common variations of MIL-STD-1760 (A, B). In addition, Checksum, SRQ bit and Header Words are supported on each channel.
Multi Function:
Each channel using the M4K1553Px-1760 module operates simultaneously as a Bus controller and/or multiple (up to 32) Remote Terminals, or as a Triggerable Bus Monitor. In addition, error injection (BC and RT modes) and error detection (all modes) are supported on each channel.
Single Function:
Each channel using the M4K1553PxS-1760 (RT validated) module operates either as a Bus Controller, Remote Terminal, or Bus Monitor.
The EXC-4000PCI/xx is supplied with C drivers, including source code, Merlin+ Windows software and may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application. Mating connector provided for I/O connection.
Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.
Ordering Information:
| Part Number |
Description |
| EXC-4000PCI/xx |
***EOL*** Please see PCN Attached
Multi-protocol interface for PCI compatible systems (4 modules)
|
| EXC-4000PCIHC/xx |

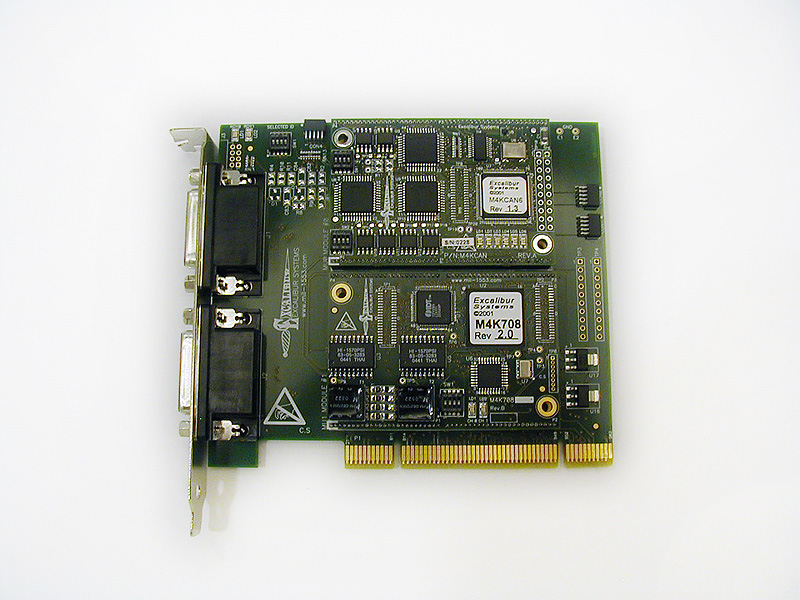

Multi-protocol interface for PCI compatible systems - half card (2 modules) |
| Lx M4K1553Px-1760 |
MIL-STD-1553 interface module: supports BC, multiple RTs,
BC/Concurrent-RT and BM modes with MIL-STD-1760 option. |
| Hx M4K1553PxS-1760 |
MIL-STD-1553 interface module: supports BC, RT or BM modes
with MIL-STD-1760 option. (RT Validated-Single Function) |
| X4K-xx |
50cm cable adapter for EXC-4000PCI/xx card [optional] |
Note:
"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
