When designing or upgrading avionics systems we are often faced with the task of integrating components that were not originally designed to work together.

A control computer that communicates using RS-232 may need to control component that expects MIL-STD-1553 messages or an INS may put out ARINC-429 labels, which are needed by Multi function Display designed around RS-422.

Faced with problems like these, integrators must choose between two poor options. They must either give up on one of the units in favor of another unit that may be less suitable but uses the appropriate communications spec; or they must add a computer system – often PC104 – which can translate from one unit to the other. These computers are generally large, heavy, hot, and require substantial power.

Excalibur’s MACC II represents a third option. A proven, low risk, low cost, off the shelf product that translates between different communications specifications. The MACC II can solve your communications problems without R&D costs and without schedule risks while still providing you with the flexibility to customize the system to your specific needs.

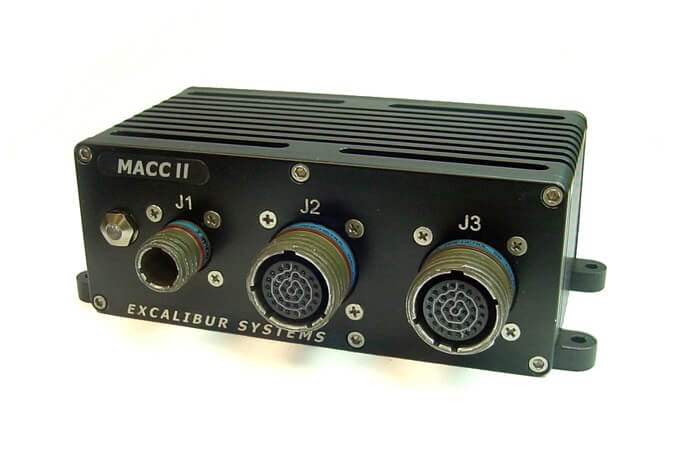

The MACC II is a wholly contained Miniature Airborne Communications Converter (data converter - protocol converter or translator). The MACC II can carry up to 4 modules. Each module can be one of the following protocols:

  • 1 dual redundant MIL-STD-1553/1760 interface
  • 1 H009 channel
  • 5 MMSI channels
  • 5 ARINC-429 channels
  • 2 ARINC-708 channels
  • 2 ARINC-717 channels
  • 5 ARINC-825 (canbus) channels
  • 2 Serial channels (RS-232/422/485, NMEA 0183)
  • Ethernet (10/100/Gigabit)
  • 10 Discrete I/O signals
  • Analog to Digital / Digital to Analog

Please see multi protocol 8000 modules for additional information on protocols that can be used on the MACC II.

The processor may be programmed to convert data in real time from any format to any other format. The MACC is programmed directly on the hardware - i.e. with no operating system - enabling it to achieve optimum latencies. Its small size, weight, low power requirements and integrated heatsink make it an excellent candidate for solving airborne communications incompatibilities.

Click for 429 to AFDX conversion

Before Ordering:

The MACC is a table driven Avionics translator that enables devices supporting different communications specifications (e.g. Ethernet, Serial, ARINC 429, CAN Bus, Mil-1553, Discretes etc.) to talk to each other.

The MACC is designed to work as COTS equipment requiring only that the user populate the translation tables and download them using the accompanying software to the MACC .

Since Excalibur engineers have the experience in dozens of projects we have found that our customer’s projects can be implemented much faster and with lower risk if we fill in the tables for them. We provide this service free of charge. The tables are then provided to the customer who may then edit them to change, add to, or refine as required by the project.

We also have experience with projects in which simple translation is insufficient and the MACC is tasked with initializing equipment on its own – without input data to guide it, or where special timing requirements or state machines need to be enforced not directly related to inputs. We often can implement these requirements into the MACC thereby solving project specific issues at lower cost and lower risk that would otherwise be possible. This may involve customization of the MACC and may incur NRE costs.

In order to implement these tables and to determine if any special processing is required we ask you to send us a written spec of your requirement.

Watch how to configure the MACC Converter:


Ordering Information:


Part Number       Description

ES-9800/xxxx-zzz

Miniature Airborne Communications Converter II -  industrial temp. with MIL-STD-704 power supply, 1-Ch 100/1000 ETHERNET, 1-Ch USB, 1-IRIG B INPUT and 1-IRIG B OUTPUT

Mating Connectors & Cable Assemblies are NOT INCLUDED

Note:      "x”   specifies a protocol.

                "z"   specifies firmware revision to be supplied by Excalibur

A* -  ARINC-429

Five programmable channels

A1 = 5 receive channels      A2 = 4 receive 1 transmit     A3 = 3 receive 2 transmit

A4 = 2 receive 3 transmit    A5 = 1 receive 4 transmit     A6 = 5 transmit channels

C* -  ARINC-708

Two programmable channels

C1 = 1 transmit 1 receive     C2 = 2 receive channels

D* -  H009

One H009 channel

H* - MIL-STD-1760

One single function channel

H1 = transformer coupled     H2 = direct coupled

I* -  Discrete I/O

10 D I/O, TTL/Avionics 0-32V DC

I1 = 10 channel input                  I2 = 4 chnl output 6 chnl input

I3 = 6 chnl output 4 chnl input     I4 = 10 channel output

J* - RS232/422/485

Two channels, Baud rate RS-232 up to 3 Mbps, RS-422/485 up to 4 Mbps

J1 = 2 channel RS-232     J2 = RS-232 / RS-485     J3 = RS-232 / RS-422

J4 = 2 channel RS-485     J5 = RS-485 / RS-422     J6 = 2 channel RS-422

M* - MIL-STD-1760

Monitor only (transmit disabled)

M1 = transformer coupled      M2 = direct coupled

N* - ARINC-717

Two channels Rx/Tx, HBP and BPRZ signals

N1 =  HBP       N2 = BPRZ

P* - ADDA

up to 10 single ended, or 5 differential, digital-to-analog (DAC) output channels, as well as 5 single ended or 5 differential analog-to-digital (ADC) input channels.

P1 = DAC outputs only (10 Single Ended or 5 Differential)

P2 =  ADC inputs only (5 Single Ended or 5 Differential)

P3 = Combined DAC and ADC

(4 Single Ended or 2 Differential DAC outputs and 3 Single Ended or 3 Differential ADC inputs)

R* - MMSI

Five channels meets requirements of AS5643, 10Mbps 1553 Protocol/RS-485 Transceivers

R5 = 5 EBR-1553 hub ports and 1 cBM port

S* - ARINC-825

(canbus)

Five channels

S5 = 5 ARINC-825 channels

T* - MIL-STD-1553

One single function channel

T1 = transformer coupled     T2 = direct coupled

V* - MIL-STD-1553

Monitor only (transmit disabled)

V1 = transformer coupled      V2 = direct coupled


            -S = Ground return isolated from shield
           -IP = Ingress Protection
