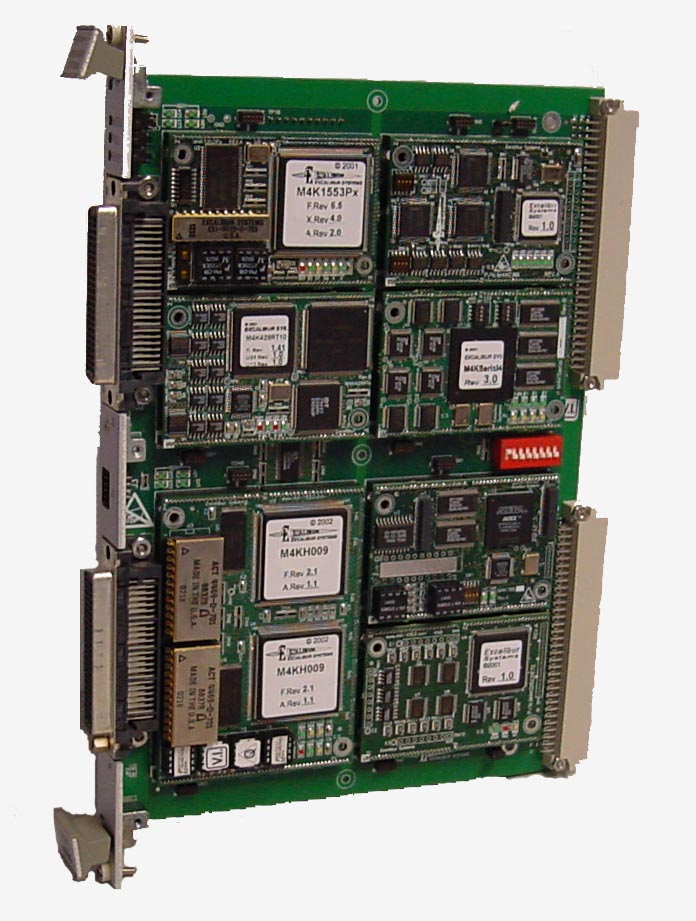

EXC-4000VME/xx, EXC-4000VXI/xx card & M4KH009 module

The EXC-4000VME/xx and EXC-4000VXI/xx cards for VME & VXI systems support up to four dual redundant H009 channels using the M4KH009 module.  Each channel can operate as a Central Computer Complex (CCC) and/or up to 16 Peripheral Units (PUs) simultaneously, or as a Bus Monitor.  In addition, a Concurrent Bus Monitor enables concurrent monitoring of the bus during CCC and PU simulation.  The module also supports error injection and detection, and all control parameters and data may be updated in real time.

The EXC-4000VME/xx and EXC-4000VXI/xx are supplied with C drivers, including source code. Mating connector provided for I/O connection.

Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.

Ordering Information:

Part Number  Description
EXC-4000VME/xx Multi-protocol interface for VME compatible systems B-size board.

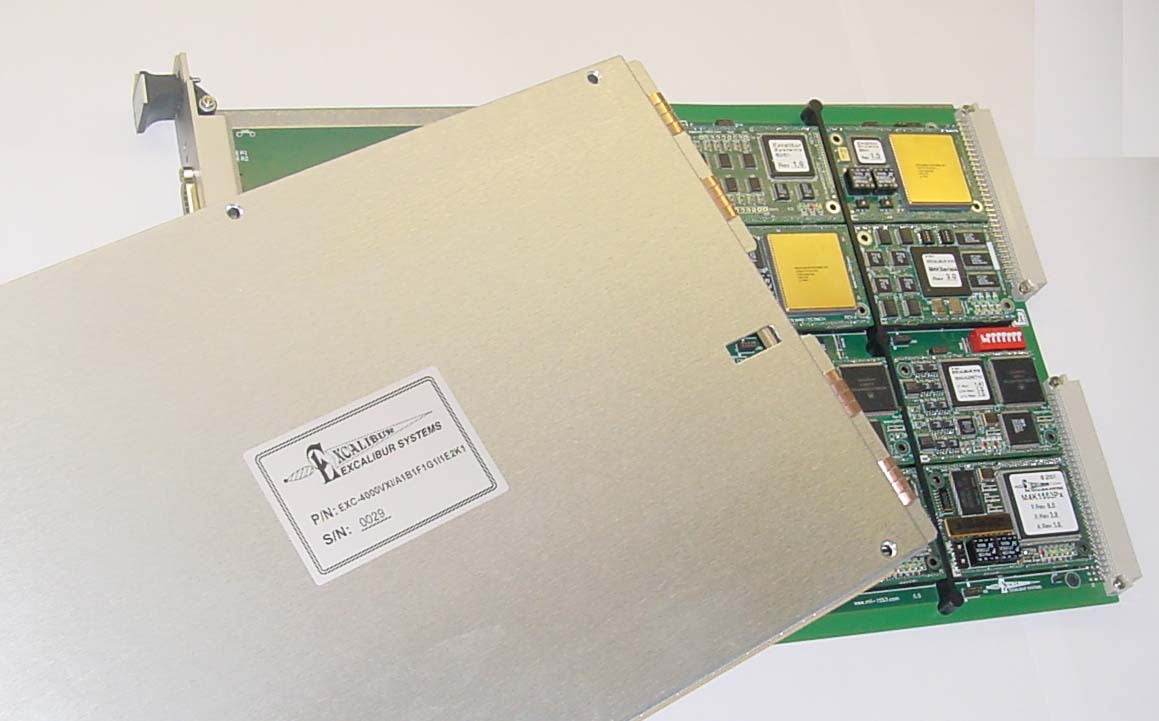

EXC-4000VXI/xx  Multi-protocol interface for VXI compatible systems C-size board, complete with shield.
Dx   M4KH009  H009 interface module for the Excalibur 4000 family

of carrier board. Supports CCC/Concurrent-PU, PU,
Bus Monitor and Concurrent Bus Monitor Modes.

X4K-xx-0.5 50cm cable adapter for EXC-4000 card [optional]

"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
