The EXC-8000PCIe/xx card for the PCI Express bus supports up to thirty two MMSI hub ports and four composite Bus Monitor outputs using the M8KMMSI module. Each module can operate in one of three modes of operation: Remote Terminal, Bus Controller/Concurrent-RT/Concurrent Monitor, and Bus Monitor.
The EXC-8000PCIe/xx is supplied with C drivers, including source code, and may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application.
Mating connectors and cable adapters for I/O connection can be purchased seperately.
Please see multi protocol 8000 modules for additional information on protocols that can be added to this card.
Ordering Information:
| Part Number |
Description |
| EXC-8000PCIe/xx |
Multi-protocol interface for PCI Express compatible systems (up to 8 modules) |
| EXC-8000PCIeHC/xx |
Multi-protocol interface for PCI Express compatible systems (up to 4 modules) |

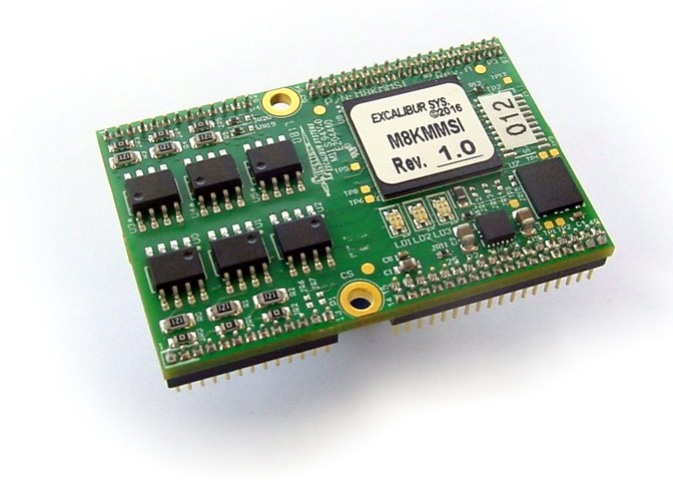

| Rx M8KMMSI |
Mini Munition Store Interface module for the Excalibur 8000 family of
carrier boards. Supports RT, BC/Concurrent -RT /Concurrent Monitor
Modes and Bus Monitor modes. Up to 8 hub ports EBR-1553 [10 Mbps
1553 protocol using RS-485 transceivers] and 1 monitor output.
|
| X8K-xx |
50cm cable adapter for EXC-8000 card [optional] |
| EXC-8000CON |
Connector assembly [optional] |
Note:
"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
