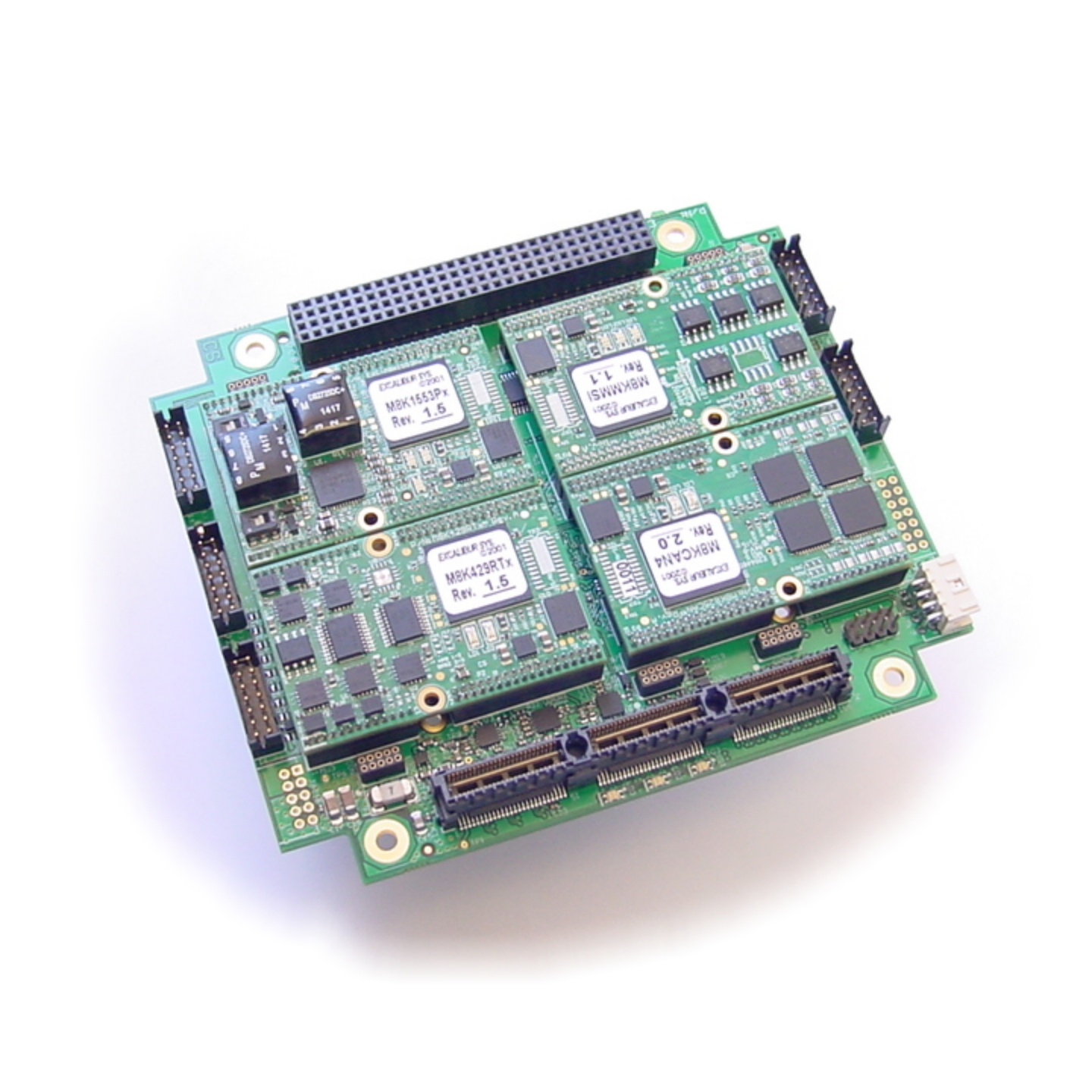

The EXC-8000PCIe104/xx card for PCI/104-Express systems supports up to twenty MMSI hub ports and composite Bus Monitor outputs using the M8KMMSI module.  Each module can operate  in one of three modes of operation: Remote Terminal, Bus Controller/Concurrent-RT/Concurrent Monitor, and Bus Monitor.

The EXC-8000PCIe104/xx is supplied with C drivers, including source code, and  may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application.

Please see multi protocol 8000 modules for additional information on protocols that can be added to this card.

Ordering Information:

Part Number  Description
EXC-8000PCIe104/xx   Multi-protocol interface for PCI/104 Express compatible systems (up to 4 modules)
Rx   M8KMMSI Mini Munition Store Interface module for the Excalibur 8000 family of

carrier boards. Supports RT, BC/Concurrent -RT /Concurrent Monitor
Modes and Bus Monitor modes. Up to 8 hub ports EBR-1553 [10 Mbps
1553 protocol using RS-485 transceivers] and 1 monitor output.

"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
