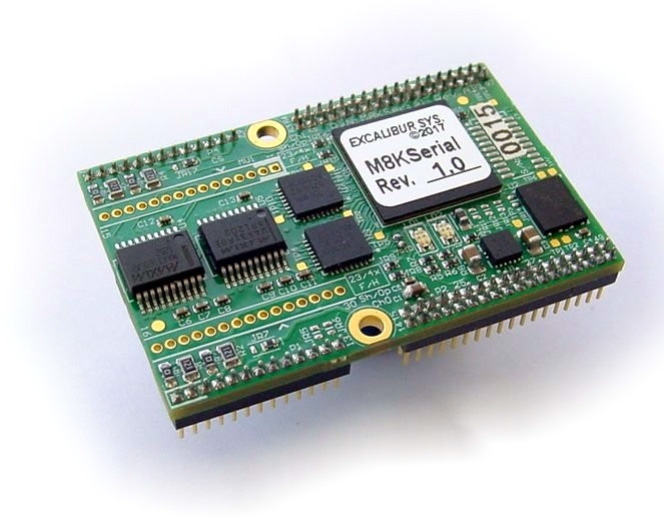

The EXC-8000PCIe/xx card for the PCI Express bus supports up to sixteen Serial channels using the M8KSerial2 module. This module supports up to two independent channels of serial communications, each of which can be selected as RS-485, RS-422 or RS-232. The module operates independently of the host computer, reducing the need for host intervention.
Each channel has a programmable baud rate of RS-232 up to 3 Mbps and RS-422 or RS-485 up to 4Mbps .
The EXC-8000PCIe/xx is supplied with C drivers, including source code.
Mating connectors and cable adapters for I/O connection can be purchased seperately.
Please see multi protocol 8000 modules for additional information on protocols that can be added to this card.
Ordering Information:
| Part Number |
Description |
| EXC-8000PCIe/xx |
Multi-protocol interface for PCI Express compatible systems [up to 8 modules]. |
| EXC-8000PCIeHC/xx |
Multi-protocol interface for PCI Express compatible systems (up to 4 modules) |
| Jx M8KSerial |
2 Channels, SW selectable for RS-232 up to 3 Mbps and RS-422 or RS-485 up to 4Mbps |
| X8K-xx |
50cm cable adapter for EXC-8000 card [optional] |
| EXC-8000CON |
Connector assembly [optional] |
|
J1- Ch0 RS232, Ch1 RS232
|
J4- Ch0 RS485, Ch1 RS485
|
|
J2- Ch0 RS232, CH1 RS485
|
J5- Ch0 RS485, CH1 RS422
|
|
J3- Ch0 RS232, CH1 RS422
|
J6- Ch0 RS422, CH1 RS422
|
Note:
"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
