EXC-4500ccVPX/xx card & M4K429RTx module

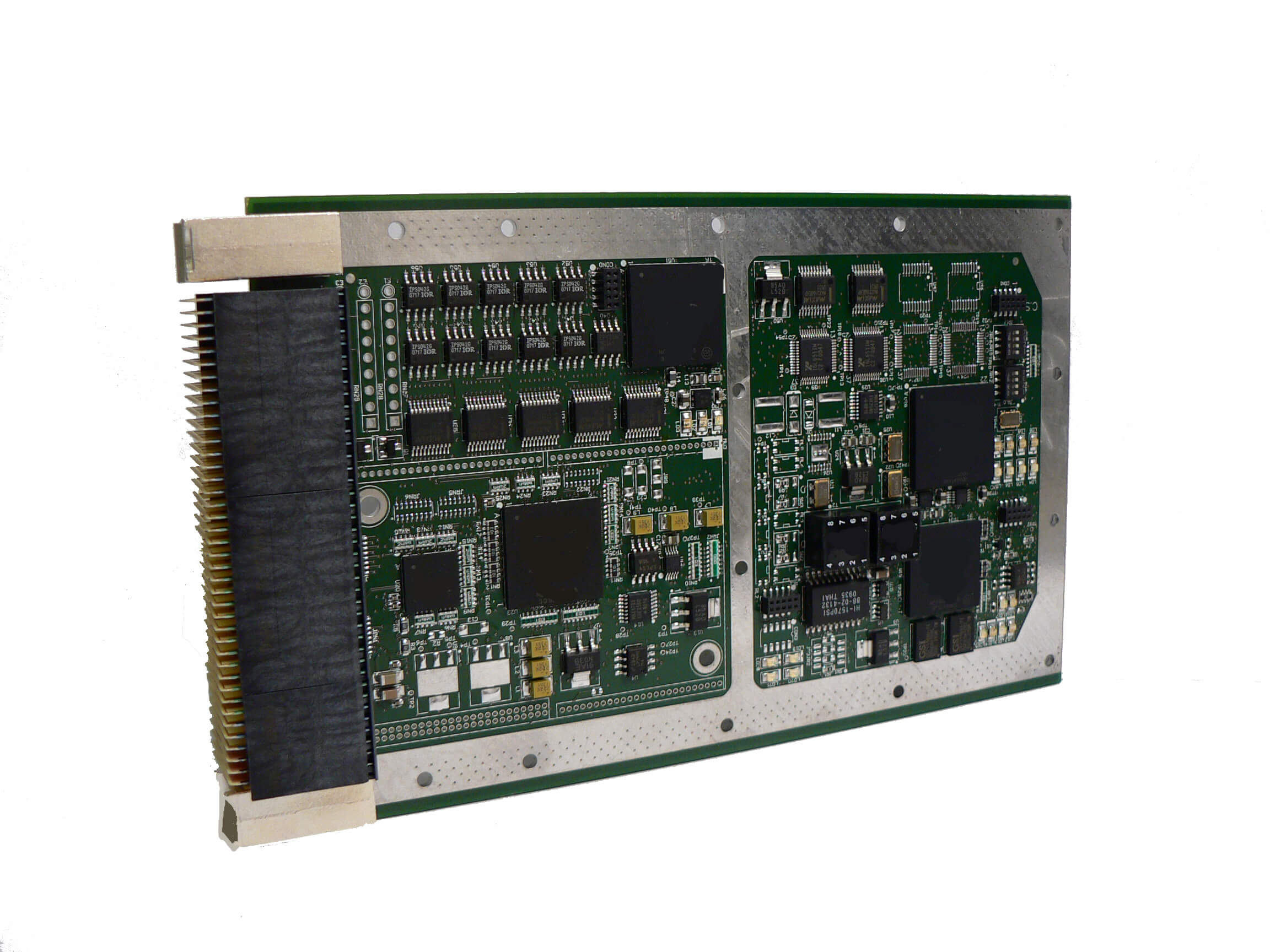

The EXC-4500ccVPX is part of the 4000 family of multiprotocol carrier boards. This conduction cooled
VPX interface board has a PCI Express host interface and can support up to four independent
modules: three onboard modules and one removable module. The onboard modules include one MIL-
STD-1553 interface module, one Serial (RS422/RS485/RS232) interface module and one Discrete
interface module. The removable module can be any of the 4000 family modules.
The M4K429RTx module, supports up to ten ARINC-429 channels in any combination of transmit and/or receive. All of the channels feature error injection and detection.
The receive channels allow for the storage of all selected labels with status and time tag information appended to each word, and also allow for filtering and multi-storage modes of data words.
The transmit channels operate via a transmit ‘instruction stack’ which allows scheduling of data transmissions and reduces the need for host computer intervention.
The EXC-4500ccVPX/xx is supplied with C drivers, including source code, Mystic application program and may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application. Mating connector provided for I/O connection.
Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.
|EXC-4500ccVPX/T1K1I1-xx||Multi-protocol interface for VPX compatible systems [4 modules]. Includes one MIL-
STD-1553 interface module, one Serial (RS422/RS485/RS232) interface module and one Discrete interface module
|Ax M4K429RT5||ARINC-429 interface module with 5 programmable channels.|
|Bx M4K429RT10||ARINC-429 interface module with 10 programmable channels.|
"xx” specifies the modules ordered with the carrier board.
"-001" added to the end of the part number specifies conformal coating option.
