EXC-4000VME/xx, EXC-4000VXI/xx card & M4KMMSI module

Excalibur Systems

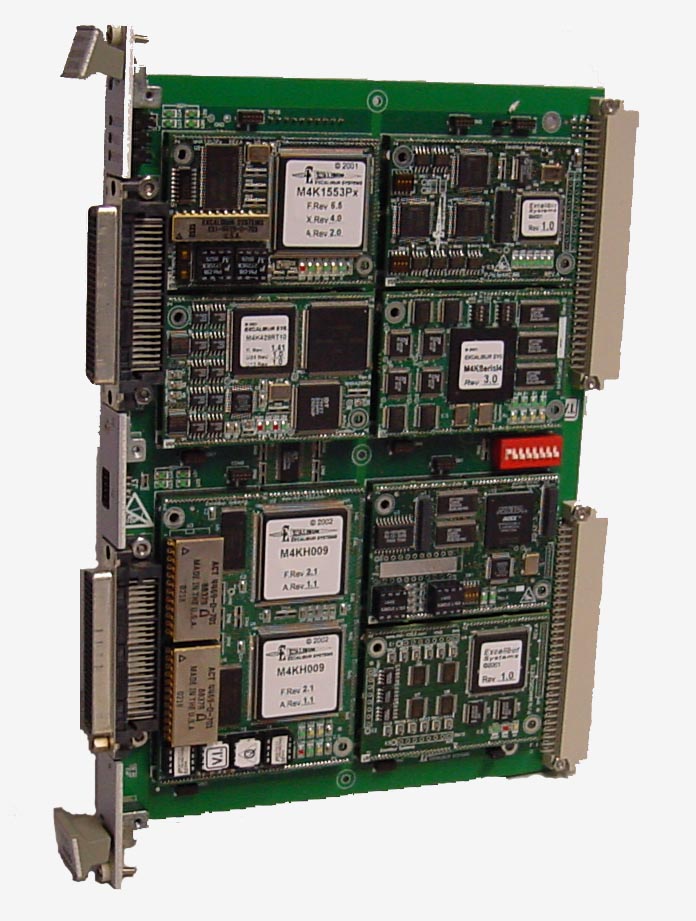

The EXC-4000VME card with 8 M4K modules
Excalibur Systems
Excalibur Systems

The EXC-4000VME/xx and EXC-4000VXI/xx boards for VME or VXI systems support up to sixty four MMSI hub ports and eight composite Bus Monitor outputs using the M4KMMSI module.  Each module can operate  in one of three modes of operation: Remote Terminal, Bus Controller/Concurrent-RT/Concurrent Monitor, and Bus Monitor.

The EXC-4000VME/xx and EXC-4000VXI/xx is supplied with C drivers, including source code. Mating connector provided for I/O connection.

Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.

Ordering Information:

Part Number Description
EXC-4000VME/xx Multi-protocol interface for VME compatible systems B-size board.

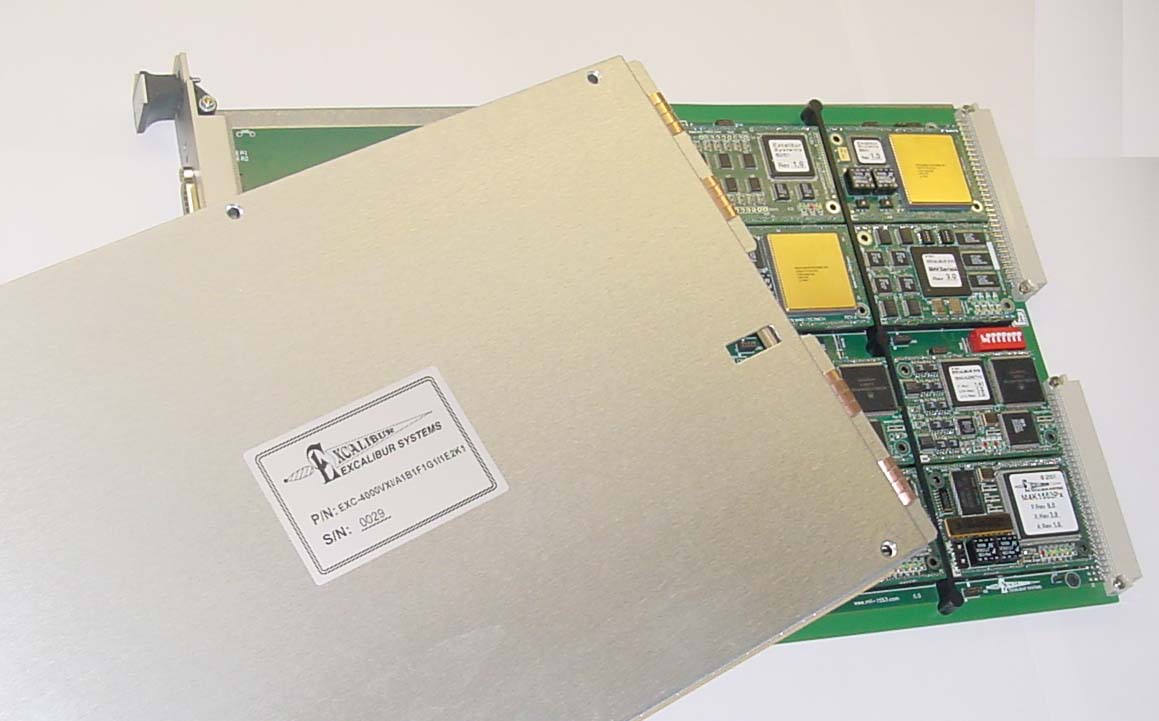

EXC-4000VXIxx  Multi-protocol interface for VXI compatible systems C-size board, complete with shield.

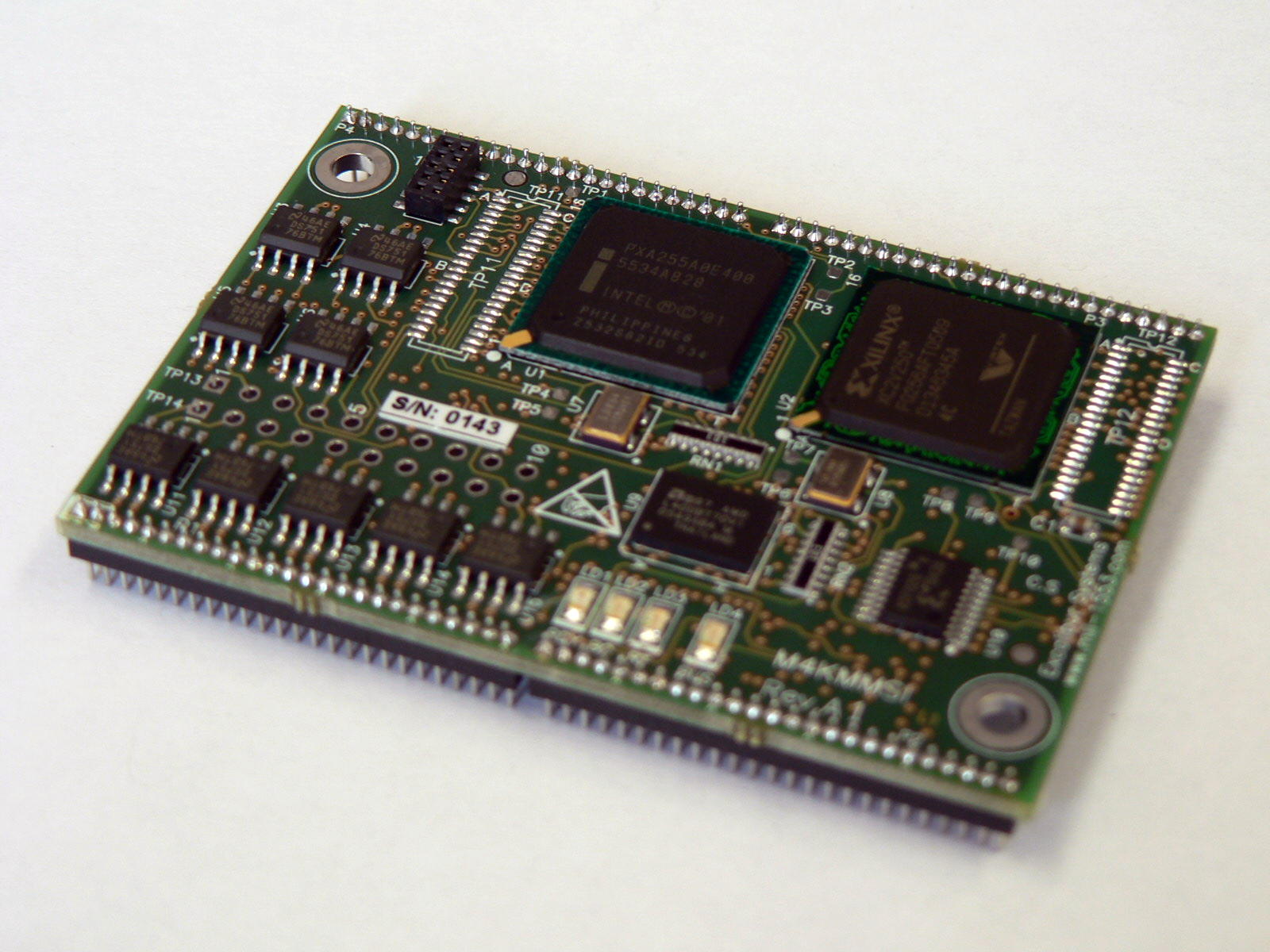

Rx   M4KMMSI Mini Munition Store Interface module for the Excalibur 4000 family of

carrier boards. Supports RT, BC/Concurrent -RT /Concurrent Monitor
Modes and Bus Monitor modes. Up to 8 hub ports EBR-1553
[10 Mbps 1553 protocol using RS-485 transceivers] and 1 monitor output.

X4K-xx-0.5  50cm cable adapter for EXC-4000 card [optional]

"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
