EXC-4000VME/xx, EXC-4000VXI/xx cards & M4K708 module
The EXC-4000VME/xx and EXC-4000VXI/xx cards for the VME & VXI systems supports up to sixteen ARINC-708 /453 channels for the Weather Radar Display Databus using the M4K708 module. Each channel is selectable as transmit or receive, implements a 64K word FIFO and supports polling and/or interrupt driven operation.
The EXC-4000VME/xx and EXC-4000VXI/xx are supplied with C drivers, including source code. Mating connector provided for I/O connection.
Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.
Ordering Information:
| Part Number | Description |

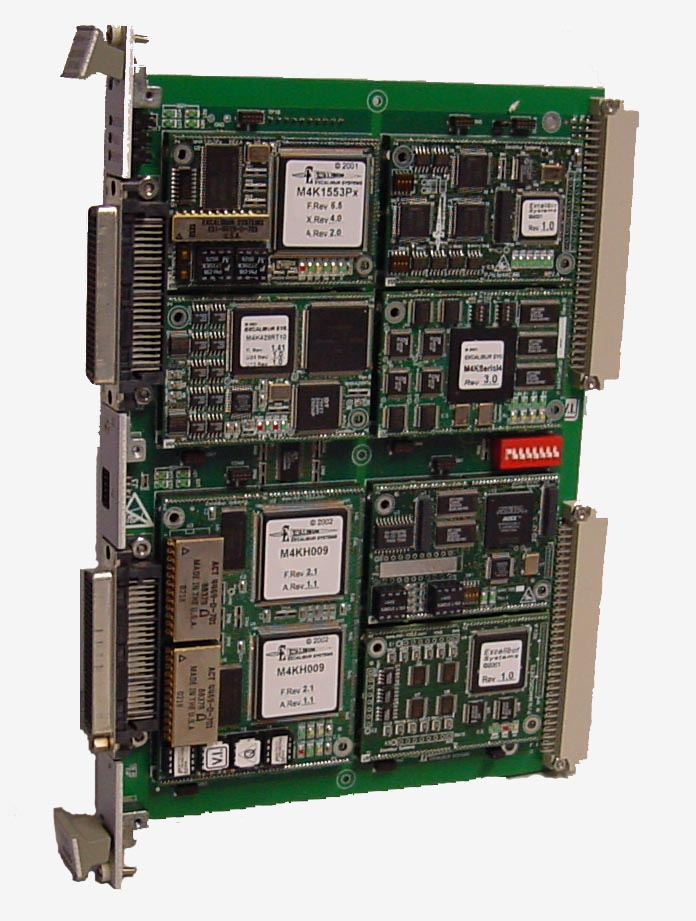

| EXC-4000VME/xx | Multi-protocol interface for VME compatible systems B-size board. |

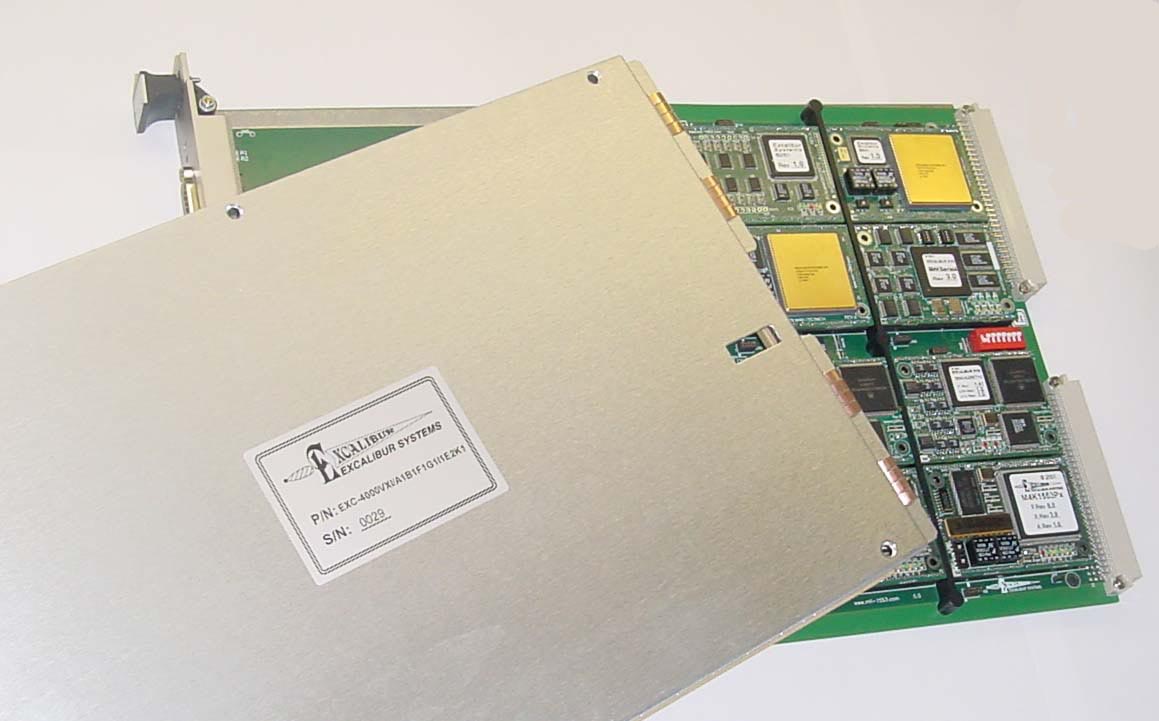

| EXC-4000VXI/xx | Multi-protocol interface for VXI compatible systems C-size board, complete with shield. |

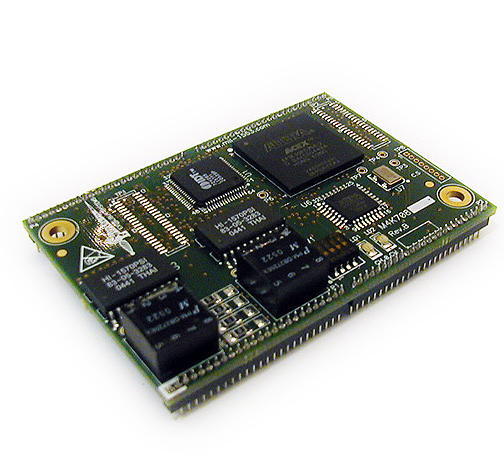

| Cx M4K708 | ARINC-708/453 interface module. Supports 2 channels. |
| X4K-xx-0.5 | 50cm cable adapter for EXC-4000 card [optional] |
Note:
"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
