The EXC-4000PCIe-64/xx card for the PCI Express bus (64-bit) supports an Ethernet channel using the M4KETH module. The module supports 10Mhz, 100Mhz and 1Ghz Full Duplex UDP/IP Ethernet.

The receive channels allow for the storage of all packets to all MAC and IP addresses with status and Time Tag information appended to each packet. The receivers allow for filtering based on MAC address, IP address and UDP port. The transmit channels enable the user to define a Bus list which controls timing and order of packets without host intervention or immediate mode which enables the host to transmit packets at will.

The EXC-4000PCIe-64/xx is supplied with C drivers, including source code and  may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application. Mating connectors provided for I/O connection.

Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.


Ordering Information:

Part Number Description
EXC-4000PCIe-64/xx Multi-protocol interface for PCI Express 64-bit compatible systems. [4 modules]

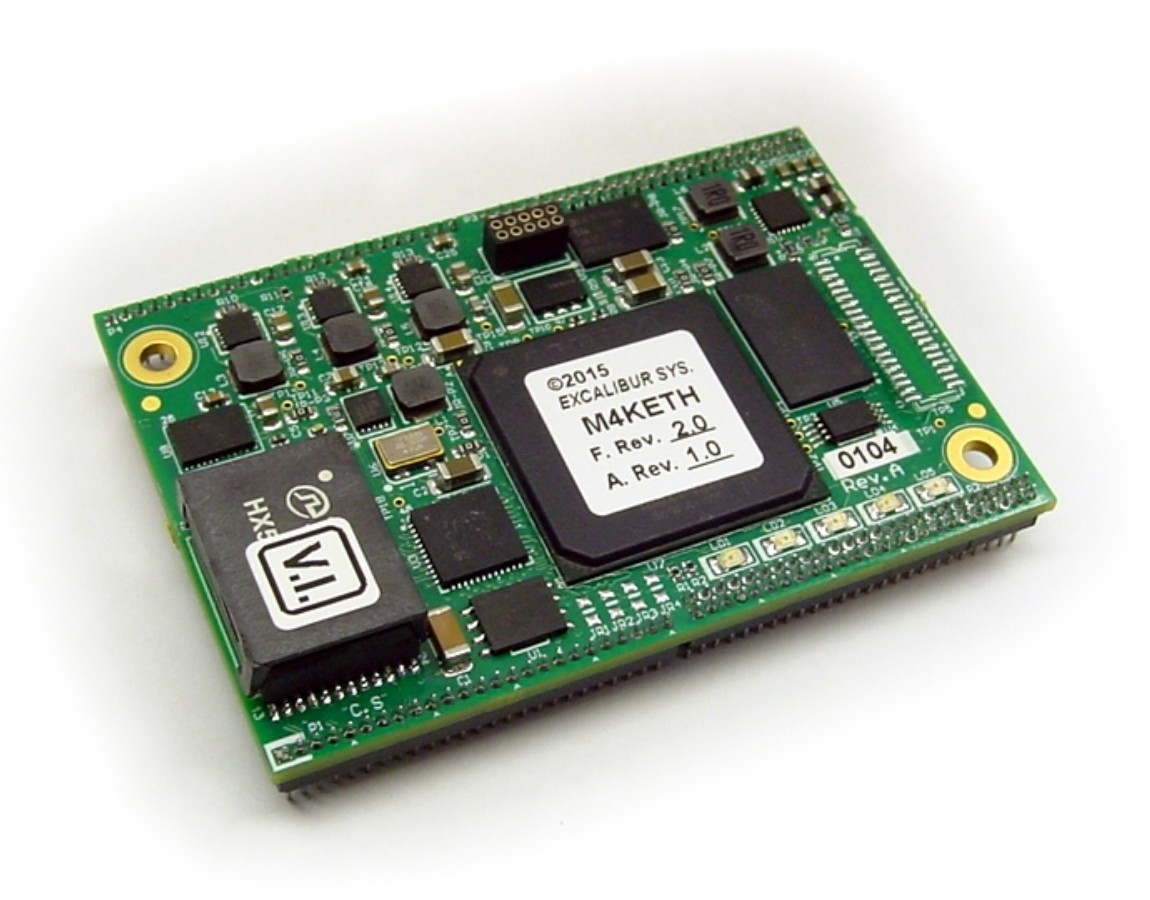

Ux   M4KETH Ethernet interface module.
X4K-xx 50cm cable adapter for EXC-4000 card [optional]

"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
