EXC-4000PCI/xx card & M4K1553Px(S) module

Excalibur Systems

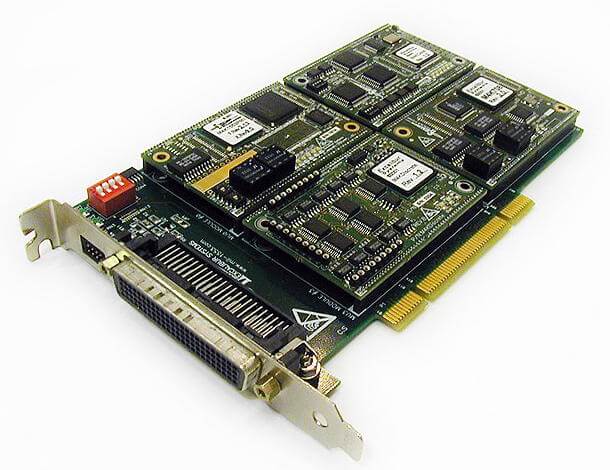

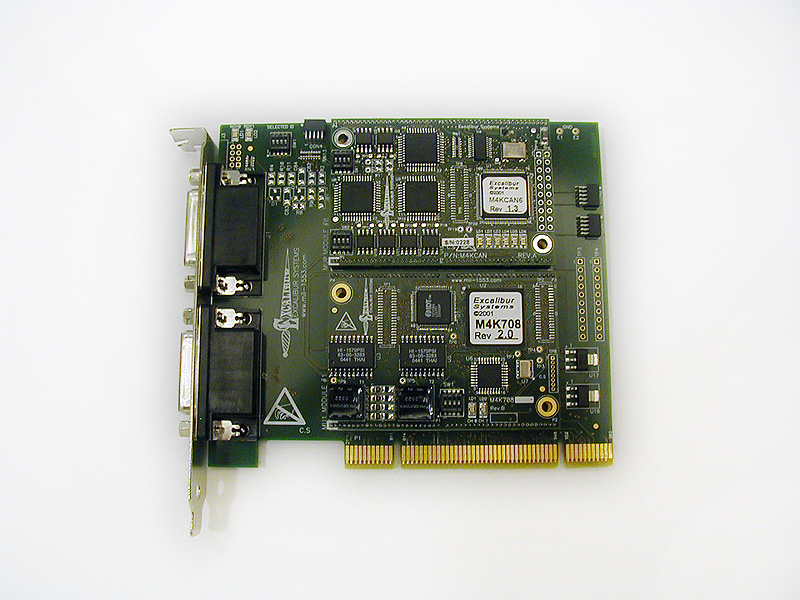

EXC-4000PCI card with 4 modules
Excalibur Systems

The EXC-4000PCI/xx card for the PCI bus supports up to four dual redundant 1553 channels using the M4K1553Px(S) module and is compatible with all common variations of MIL-STD-1553 (A, B).

Multi Function:

Each channel using the M4K1553Px module operates simultaneously as a Bus controller and/or multiple (up to 32) Remote Terminals, or as a Triggerable Bus Monitor. In addition, error injection (BC and RT modes) and error detection (all modes) are supported on each channel.

Single Function:

Each channel using the M4K1553PxS (RT validated) module operates either as a Bus Controller, Remote Terminal, or Bus Monitor.

NOTE: the M4K1553PxS module is NOT compatible to the M4K1553MCH module.

The EXC-4000PCI/xx is supplied with C drivers (including source code), Merlin+ Windows software and may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application. Mating connector provided for I/O connection. Mating connector provided for I/O connection.

Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.

Ordering Information:

Part Number Description
EXC-4000PCI/xx Multi-protocol interface for PCI compatible systems
Fx   M4K1553Px MIL-STD-1553 interface module: supports BC, multiple RTs, BC/Concurrent-RT and BM modes.
Tx   M4K1553PxS MIL-STD-1553 interface module: supports BC, RT or BM modes. (RT Validated-Single Function)
X4K-xx 50cm cable adapter for EXC-4000 card [optional]


Note:
"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.

"-001" added to the end of the part number specifies conformal coating option.
