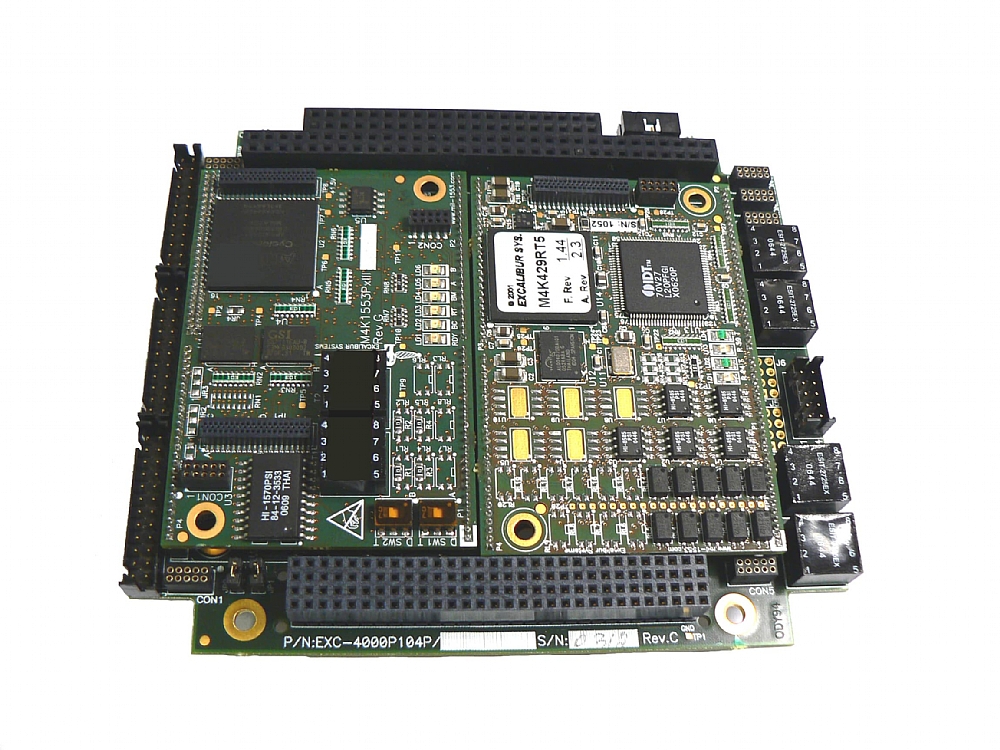

The EXC-4000P104Plus/xx card for the PC/104 Plus system supports up to thirty ARINC-429 channels in any combination of transmit and/or receive. All of the channels feature error injection and detection.
The receive channels allow for the storage of all selected labels with status and time tag information appended to each word, and also allow for filtering and multi-storage modes of data words.

The transmit channels operate via a transmit ‘instruction stack’ which allows scheduling of data transmissions and reduces the need for host computer intervention.

The EXC-4000P104Plus/xx is supplied with C drivers, including source code, Mystic application program and  may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application. Mating connector provided for I/O connection.

Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.

Please see our Dragon rugged PC/104 system for a complete PC/104 solution.

Ordering Information:

Part Number  Description
EXC-4000P104Plus/xx  Multi-protocol interface for PC/104 Plus compatible systems.
Ax   M4K429RT5  ARINC-429 interface module with 5 programmable channels.
Bx   M4K429RT10  ARINC-429 interface module with 10 programmable channels.


"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-R" rugged configuration

"-001" added to the end of the part number specifies conformal coating option.
