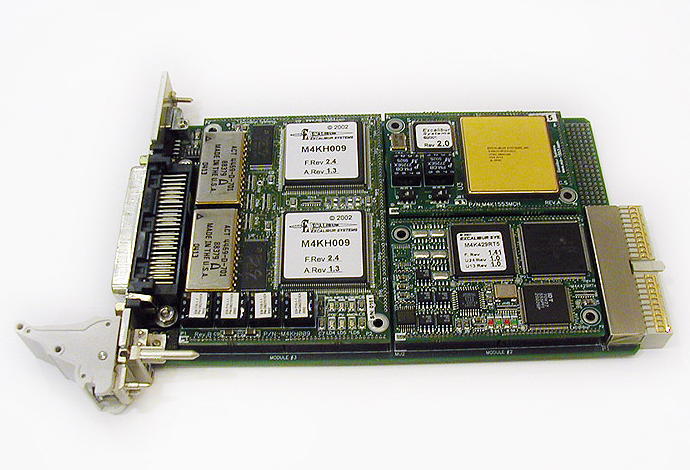

The EXC-4000cPCI/xx card for Compact PCI systems supports up to eight ARINC-708 /453 channels for the Weather Radar Display Databus using the M4K708 module. Each channel is selectable as transmit or receive, implements a 64K word FIFO and supports polling and/or interrupt driven operation.

The EXC-4000cPCI/xx is supplied with C drivers, including source code and may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application. Mating connector provided for I/O connection.

Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.

Ordering Information:

Part Number Description
EXC-4000cPCI/xx Multi-protocol interface for Compact PCI (3U) compatible systems.
EXC-4000cPCI6U/xx Multi-protocol interface for Compact PCI (6U) compatible systems.
EXC-4000cPCI/xx-002 Same as above with P2 Rear I/O connector. For 32-bit systems only.
Cx   M4K708 ARINC-708/453 interface module. Supports 2 channels.
X4K-xx-0.5 50cm cable adapter for EXC-4000 card [optional]


Note:
"xx” specifies the modules ordered with the carrier board.
"-E"  added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
