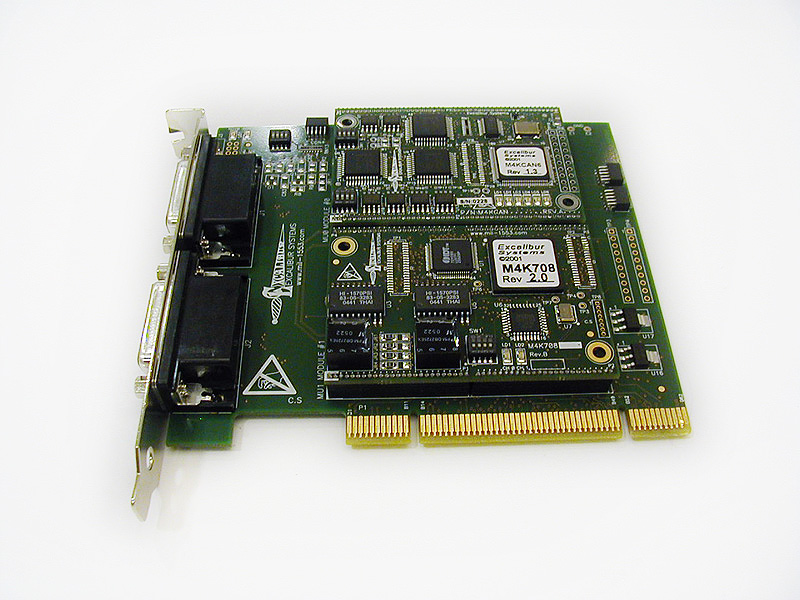

The board supports up to 2 modules, each module represents an independent test and simulation device.

Modules available include ARINC-429, ARINC-708, Serial, Discrete and CAN bus (MIL-STD-1553 / 1760, H009 and MMSI cannot be used on this card). The EXC-2000PCI represents a breakthrough in flexibility for avionics test equipment permitting the simulation of more than one protocol from a single PCI board. It will, for example, be possible to control 20 ARINC-429 channels and 20 discrete I/O from a single board. Most modules are dual port RAM processor based and offer a simple and powerful interface to the card.

The EXC-2000PCI is supplied with C drivers, including source code. Mating connector provided for I/O connection.

Ordering Information:

Part Number Description
EXC-2000PCI/xx Multi-protocol interface for PCI compatible systems

"xx” specifies the modules ordered with the carrier board (up to 2 modules).
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
