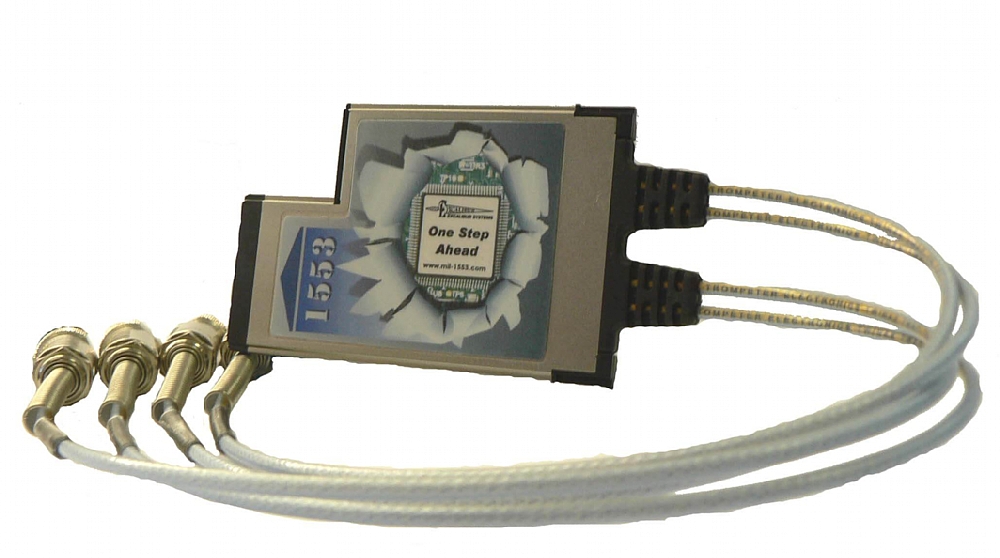

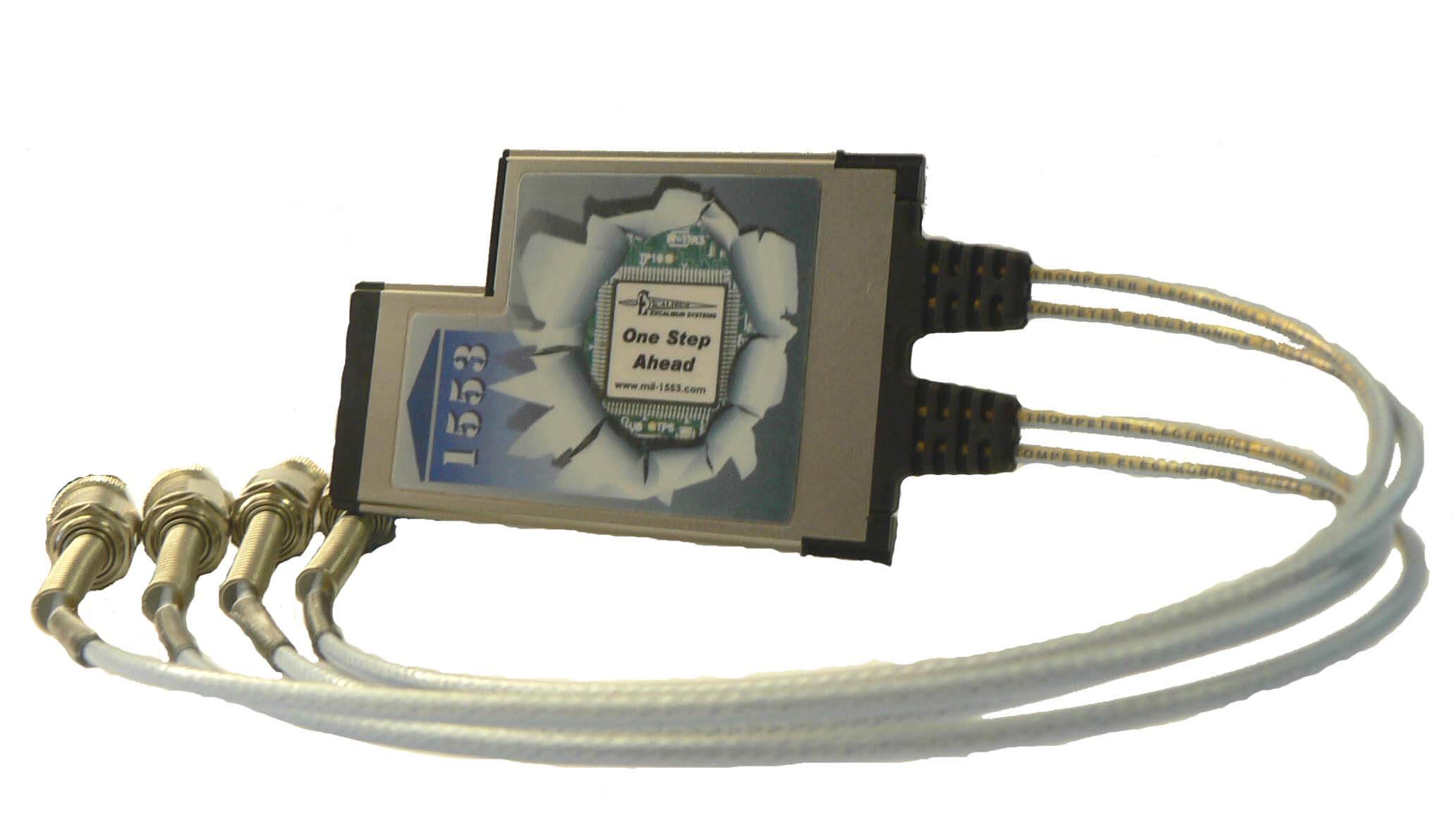

This 54 millimeter wide Express card interface supports up to two dual redundant 1553 channels and is compatible with all common variations of MIL-STD-1553 providing a wide range of features normally found only on full size testers.
Multi Function
Each channel of the EXC-1553ExCard/Px operates simultaneously as a Bus Controller and/or multiple (up to 32) Remote Terminals, or as a Triggerable Bus Monitor. The card supports error injection and detection. The card’s small size and compatibility with notebook computers make it the perfect solution for performing system simulation of the MIL-STD-1553 bus, in the lab and in the field.
Single Function
Each channel of the EXC-1553ExCard/PxS operates either as a Bus Controller, Remote Terminal, or Bus Monitor.
Note: the PxS card is NOT compatible to the EXC-1553PCMCIA/B card or any of the MCH family of cards.
The EXC-1553ExCard/Px and EXC-1553ExCard/PxS cards are supplied with C drivers, including source code, Merlin+ Windows software and may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application.
Note: Some laptops do not supply the average and peak power voltages required by the ExpressCard specification. The EXC-1553ExCard/Px may not function properly in these laptops.
Ordering Information:
| Part Number |
Description |
| EXC-1553ExCard/P1 |
Single channel 1553 Express Card MIL-STD-1553 multi function interface card for Express Card compatible notebooks with ruggedized, hard-wired cable connection. |
| EXC-1553ExCard/P2 |
Dual channel 1553 Express Card MIL-STD-1553 multi function interface card for Express Card compatible notebooks with ruggedized, hard-wired cable connection. |
| EXC-1553ExCard/P1S |
Single channel 1553 Express Card MIL-STD-1553 single function interface card for Express Card compatible notebooks with ruggedized, hard-wired cable connection. |
| EXC-1553ExCard/P2S |
Dual channel 1553 Express Card MIL-STD-1553 single function interface card for Express Card compatible notebooks with ruggedized, hard-wired cable connection. |
| EXC-1553ExCard/P1M |
MIL-STD-1553 monitor only channel for Express Card compatible notebooks with ruggedized, hard-wired cable connection. |
| EXC-1553ExCard/P2M |
Two MIL-STD-1553 monitor only channels for Express Card compatible notebooks with ruggedized, hard-wired cable connection. |
Note:
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
