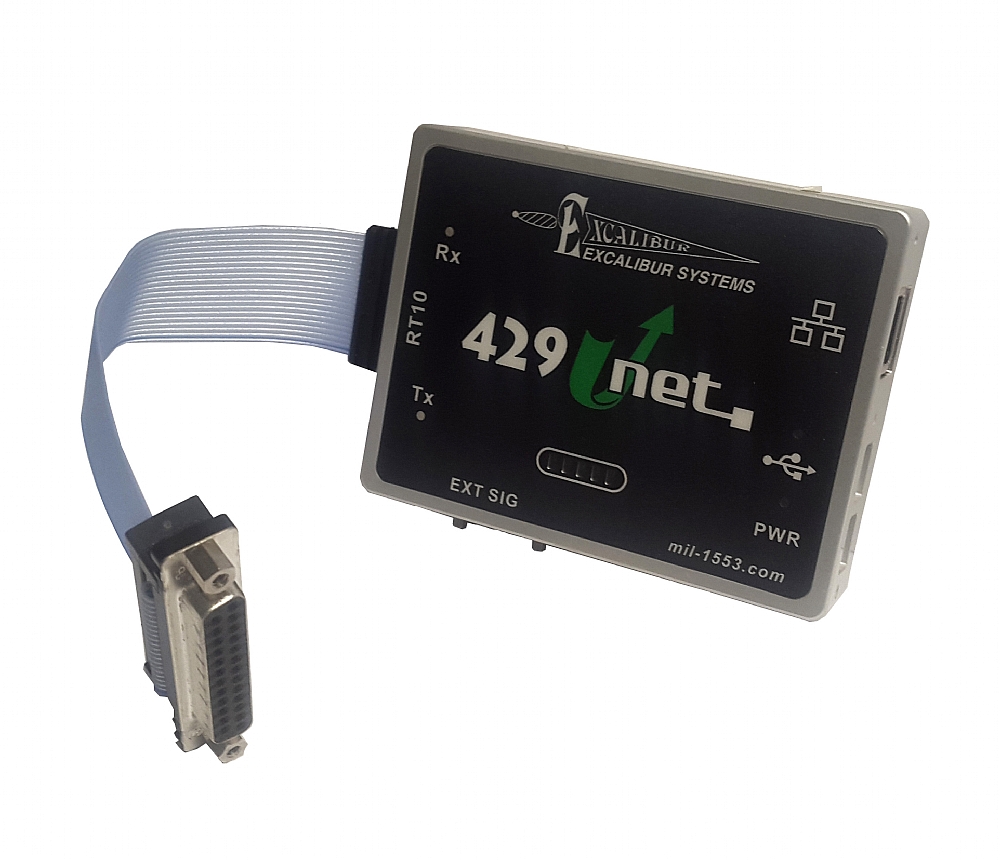

The DAS-429UNET/RTx is an intelligent, multichannel ARINC 429 interface device. Its small size and ability to interface through USB or Ethernet interfaces make it a complete solution for developing, testing and performing system simulation of the ARINC 429 bus, both in the lab and in the field. In addition, this device provides 8 I/O Discrete signals and an IRIG B input.

The DAS-429UNET/RTx shares its API with the entire RTx family so that applications currently running on our PCIe, PCI, ExpressCard, or PCMCIA cards, will run without change on this device.

Multiple units can operate via USB ports on the same computer. In addition, multiple units can operate on the same network, by programming each one with a unique IP address, and can be accessed from any computer on the network.

The EXC-429UNET/RTx adapter is supplied with C drivers, including source code and may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application (only versions 8.1 or higher).

Order Information:

Part Number Description
DAS-429UNET/RT5 5-channel ARINC-429 interface card
DAS-429UNET/RT10     10-channel ARINC-429 interface card
DAS-429UNET/RT8-717   8-channel ARINC-429 & 2-channel ARINC-717


Additional options:

"-C"  soldered cable

"-M"  mounted connectors

"-P"  mounting plate

"-B"  internal rechargeable battery
