*** OBSOLETE ***

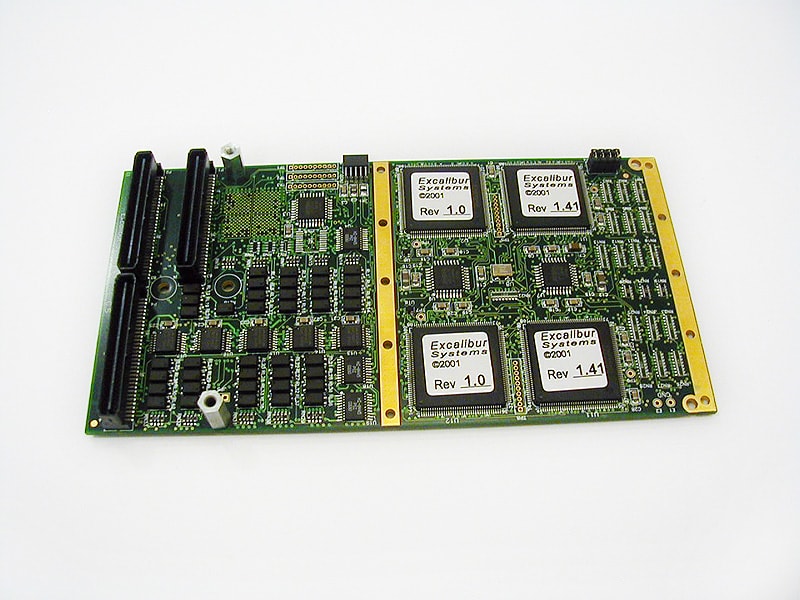

The DAS-429PMC/RTx is a PMC card which supports five, ten, fifteen or twenty ARINC-429 channels. The DAS-429PMC/RTxD is a PMC card which supports five, ten or fifteen ARINC-429 channels and eight Discretes [4 Inputs and 4 Outputs]. Each channel is software selectable to act as receive or transmit. The receiver mode allows for storage of all selected information. An on-board high-speed processor and 64 Kbytes of true dual-port RAM for each ten channels offer a simple and powerful interface to the card. The card operates independently of the host computer, reducing the need for host intervention.

The DAS-429PMC/RTx is supplied with C drivers, including source code, Mystic application program and  may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application. Mating connector provided for I/O connection.

Ordering Information:

Part Number Description
DAS-429PMC/RTx ARINC 429 interface board. Supports up to 20 channels
DAS-429PMC/RTxD ARINC 429 interface board with Discretes.
Supports up to 15 ARINC 429 Channels and 8 Discretes [4 Inputs and 4 Outputs]

"x" Indicates total number of channels: 5, 10,15 or 20
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
