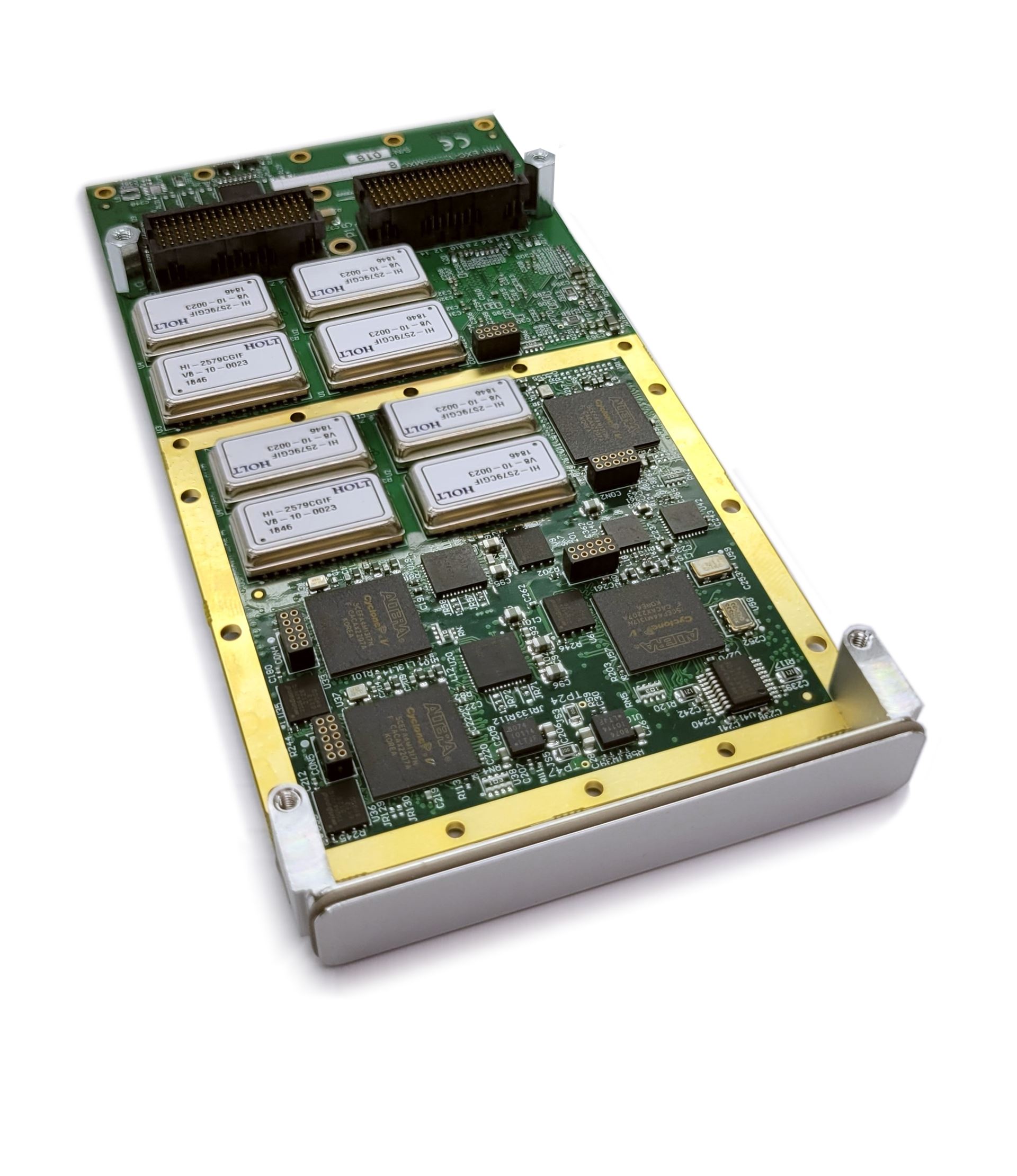

The EXC-8000ccXMC is part of Excalibur’s 8000 family of multiprotocol boards. This conduction cooled XMC interface board has a PCI Express host interface and supports up to 4 Px modules, 2 RTx 5 channel modules, 1 Discrete and 1 Serial module. Due to the constraints of the XMC specification the modules are integrated onto the board itself rather than as physically separate modules.
The EXC-8000ccXMC supports Direct Memory Access (DMA), which enables the board to access system memory for reading and writing independently of the computer’s CPU. This results in faster data transfer to and from modules that support DMA, with much less CPU overhead than when not using DMA.
The EXC-8000ccXMC is supplied with C drivers, including source code.
Ordering Information:
| Part Number |
Description |
| EXC-8000ccXMC/xx |
Multi-protocol interface for conduction cooled XMC equipped computers
|
Note:
"xx” specifies the modules ordered with the carrier board (up to 4 modules) see below for module codes .
"-001" added to the end of the part number specifies conformal coating option.
"-R" Ruggedized option
| A0 - ARINC-429 |
Five channels ARINC-429
Software selectable as transmit or receive.
|
| C0 - ARINC 708/453 |
Two channels ARINC 708/453
Software selectable as transmit or receive.
|
| F* - MIL-STD-1553 |
One Multi-function channel
F1 = transformer coupled F2 = direct coupled
|
| G* - MIL-STD-1553 |
One Monitor only (Transmit disabled)
G1 = transformer coupled G2 = direct coupled
|
| H* - MIL-STD-1760 |
One single function channel
H1 = transformer coupled H2 = direct coupled
|
| I* - Discrete I/O |
10 D I/O, TTL/Avionics 0-32V DC
I1 = 10 channel input I2 = 4 chnl output 6 chnl input
I3 = 6 chnl output 4 chnl input I4 = 10 channel output
|
| J* - RS232/422/485 |
Two channels, Baud rate RS-232 up to 3 Mbps, RS-422/485 up to 4 Mbps
J1 = 2 channel RS-232 J2 = RS-232 / RS-485 J3 = RS-232 / RS-422
J4 = 2 channel RS-485 J5 = RS-485 / RS-422 J6 = 2 channel RS-422
|
| K* - MIL-STD-1760 |
One Monitor only (Transmit disabled)
K1 = transformer coupled K2 = direct coupled
|
| L* - MIL-STD-1760 |
One 1760 Multi-function channel
L1 = transformer coupled L2 = direct coupled
|
| M* - MIL-STD-1760 |
Monitor only (transmit disabled)
M1 = transformer coupled M2 = direct coupled
|
| N* - ARINC-717 |
Two channels Rx/Tx, HBP and BPRZ signals
N1 = HBP N2 = BPRZ
|
| T* - MIL-STD-1553 |
One single function channel
T1 = transformer coupled T2 = direct coupled
|
| V* - MIL-STD-1553 |
Monitor only (transmit disabled)
V1 = transformer coupled V2 = direct coupled
|
*For more information see multi protocol 8000 modules
