EXC-4000PCI/xx, EXC-2000PCI/xx cards & M4K717 module
*** 4000 Not recommended for new designs ***

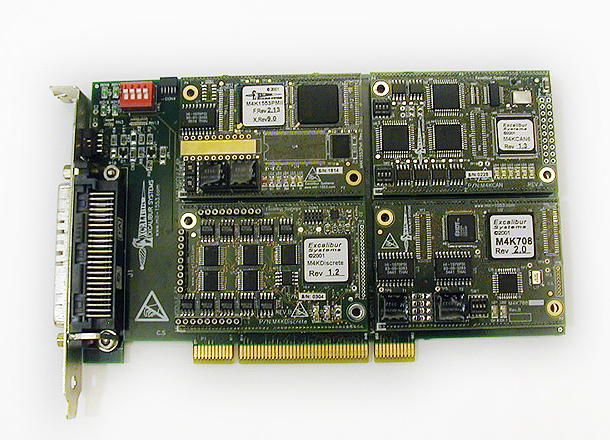

The EXC-4000PCI/xx card for the PCI bus, supporting 32-bit modules, supports up to eight ARINC-717 channels in any combination of transmit and/or receive.
In transmit mode, the module sends the four subframes from a pre-defined buffer in dual-port RAM.
In receive mode, the module stores all subframes with status and Time Tag information appended to each subframe.
The EXC-4000PCI/xx is supplied with C drivers, including source code. Mating connector provided for I/O connection.
Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.
Ordering Information:
| Part Number | Description |
| EXC-4000PCI/xx | Multi-protocol interface for PCI compatible systems [4 modules]. |
| EXC-2000PCI/xx | Multi-protocol interface for PCI compatible systems [2 modules]. |
| Nx M4K717 | ARINC-717 interface module with 2 independent channels. |
| X4K-xx | 50cm cable adapter for EXC-4000 card [optional] |
Note:
"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
