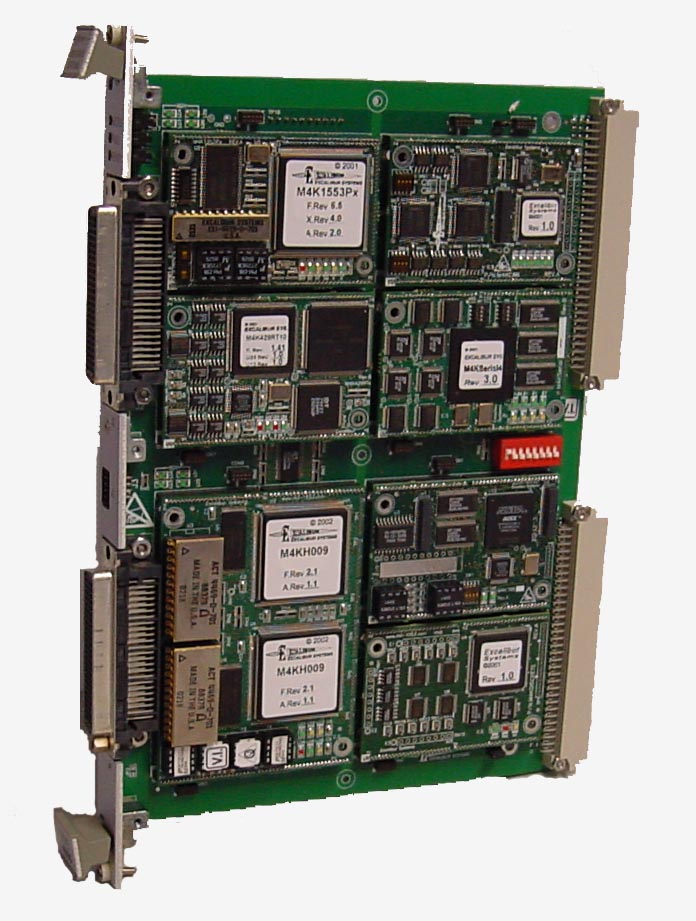

EXC-4000VME/xx, EXC-4000VXI/xx cards & M4K429RTx module

The EXC-4000VME/xx and EXC-4000VXI/xx cards for the VME & VXI systems supports up to eighty ARINC-429 channels in any combination of transmit and/or receive. All of the channels feature error injection and detection capabilities.
The receive channels allow for the storage of all selected labels with status and time tag information appended to each word, and also allow for filtering and multi-storage modes of data words.

The transmit channels operate via a transmit ‘instruction stack’ which allows scheduling of data transmissions and reduces the need for host computer intervention.

The EXC-4000VME/xx and EXC-4000VXI/xx are supplied with C drivers, including source code, Mystic application program and  may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application. Mating connector provided for I/O connection.
Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.

Ordering Information:

Part Number  Description
EXC-4000VME/xx Multi-protocol interface for VME compatible systems B-size board.

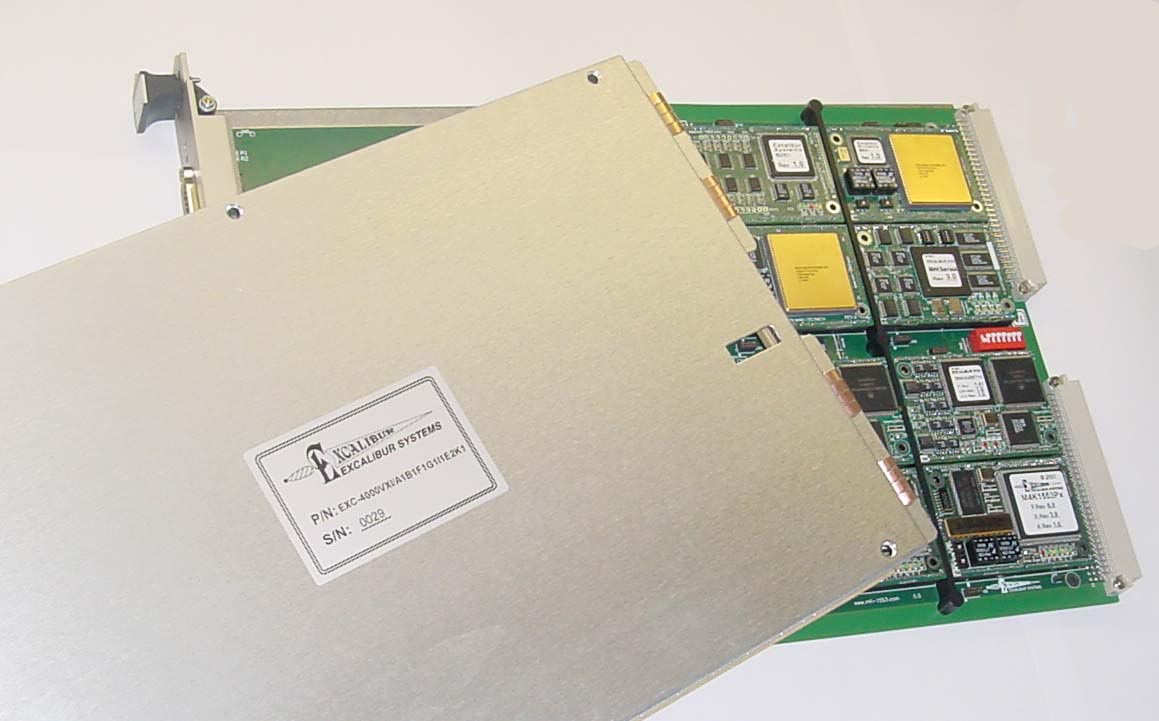

EXC-4000VXI/xx Multi-protocol interface for VXI compatible systems C-size board, complete with shield.

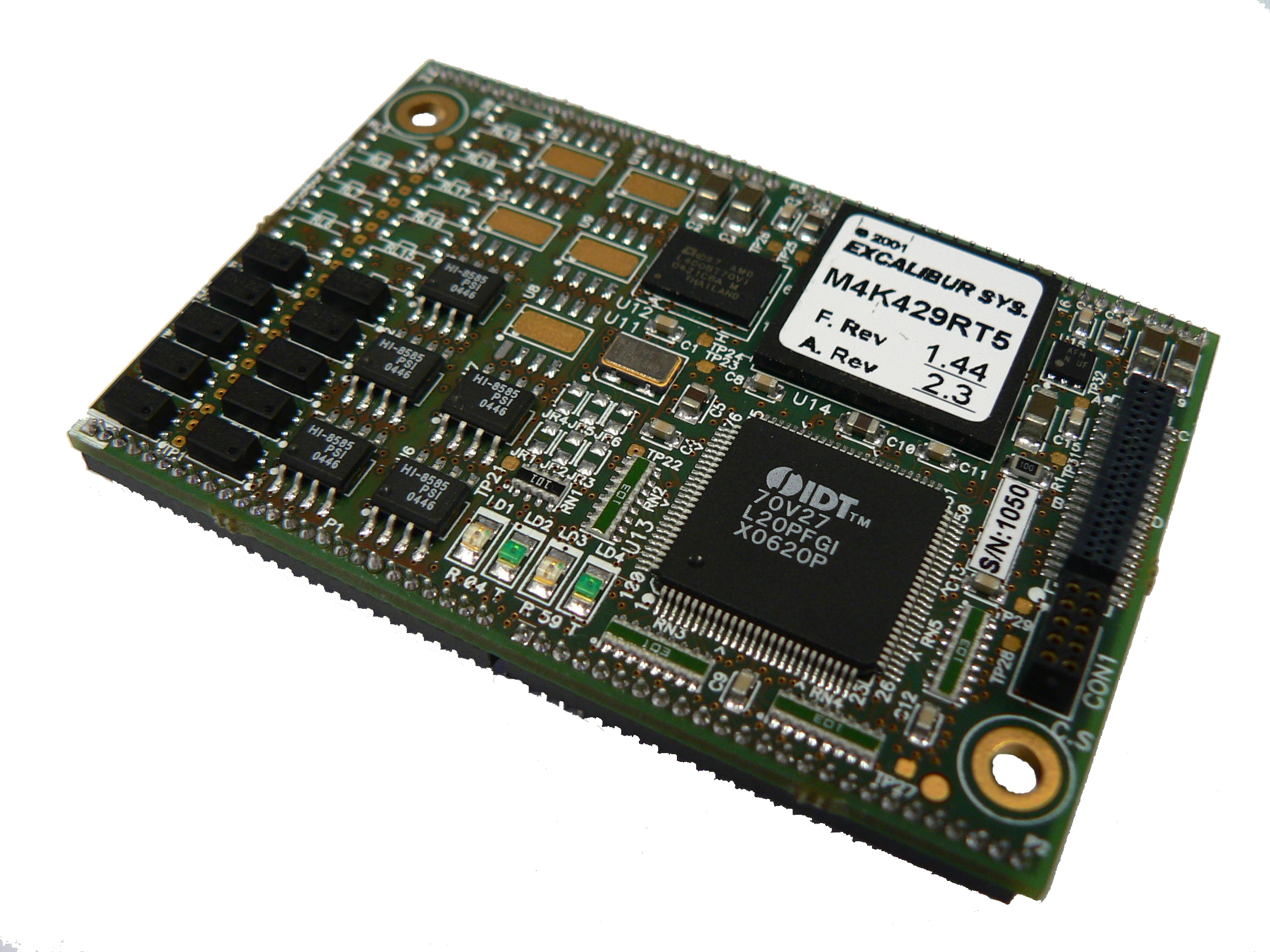

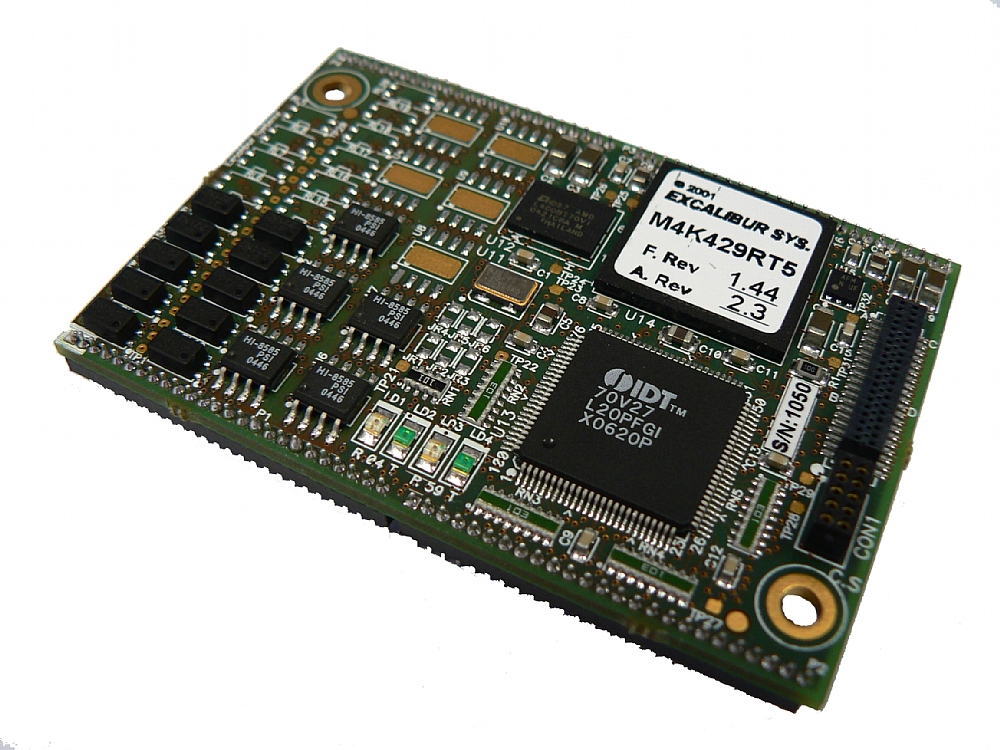

Ax   M4K429RT5 ARINC-429 interface module with 5 programmable channels.
Bx   M4K429RT10 ARINC-429 interface module with 10 programmable channels.
X4K-xx 50cm cable adapter for EXC-4000 card [optional]

"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
