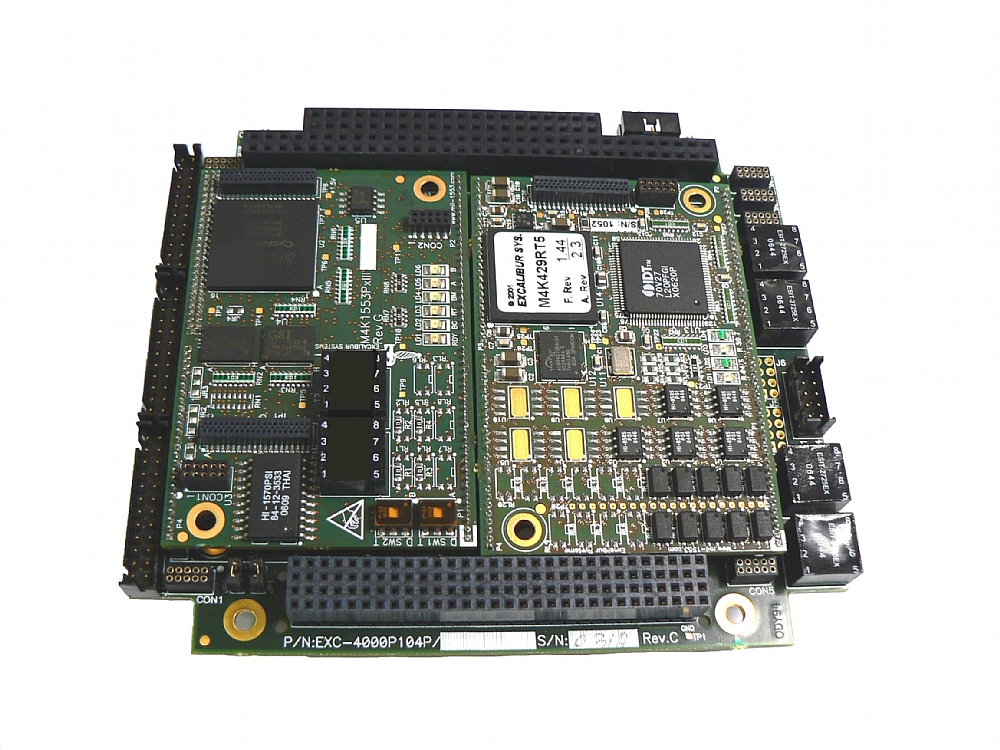

The EXC-4000P104Plus/xx card for PC/104 Plus systems supports up to four dual redundant 1553 channels using the M4K1553Px(S) module and is compatible with all common variations of MIL-STD-1553 (A, B).
Multi Function:
Each channel using the M4K1553Px module operates simultaneously as a Bus controller and/or multiple (up to 32) Remote Terminals, or as a Triggerable Bus Monitor. In addition, error injection (BC and RT modes) and error detection (all modes) are supported on each channel.
Single Function:
Each channel using the M4K1553PxS (RT validated) module operates either as a Bus Controller, Remote Terminal, or Bus Monitor.
NOTE: the M4K1553PxS module is NOT compatible to the M4K1553MCH module or any of the MCH family of cards.
The EXC-4000P104Plus/xx is supplied with C drivers (including source code), Merlin+ Windows software and may be used with Exalt, Excalibur’s Analysis and Laboratory Tools, a Windows monitoring application. Mating connector provided for I/O connection.
Please see multi protocol 4000 modules for additional information on protocols that can be added to this card.
Please see our Dragon rugged PC/104 system for a complete PC/104 solution.
Ordering Information:
| Part Number |
Description |
| EXC-4000P104Plus/xx |
Multi-protocol interface for PC/104 Plus compatible systems. |
| Fx M4K1553Px |
MIL-STD-1553 interface module: supports BC, multiple RTs, BC/Concurrent-RT and BM modes. |
| Tx M4K1553PxS |
MIL-STD-1553 interface module: supports BC, RT or BM modes. (RT Validated-Single Function) |
Note:
“xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-R" rugged configuration
"-001" added to the end of the part number specifies conformal coating option.
