Come see the variety of ARINC board level products:

* stand alone ARINC-429 and mixed protocol products.

* up to 10 channels on PCMCIA cards

* up to 20 channels on PMC / ccPMC cards

* up to 30 channels on PC/104 Plus cards

* up to 40 channels for PCI & cPCI cards

* up to 80 channels VME / VXI cards

Click here fore more information!

SURVEY

We have put together a few questions that will help us provide you with quality products and support.

Please click on the following link and answer our survey.

Click Here to take survey

CONDUCTION COOLED

ARINC-429 / 575

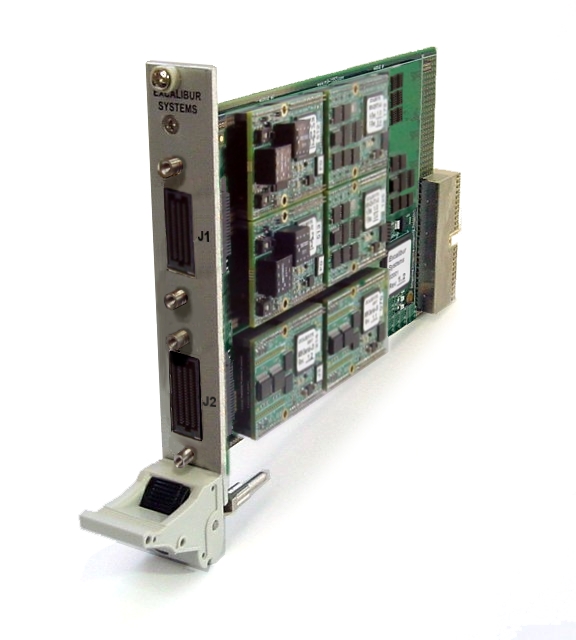

The DAS-429ccPMC/RTx is a conduction cooled PMC card which supports five, ten, fifteen or twenty ARINC-429 channels. The DAS-429ccPMC/RTxD is a conduction cooled PMC card which supports five, ten or fifteen ARINC-429 channels and eight Discretes [4 Inputs and 4 Outputs]. Each ARINC-429 channel is software selectable to act as receive or transmit.

Protocol Converter

The MACC is a complete Miniature Airborne Communications Converter designed to convert bi-directional messages. The MACC converts messages between: MIL-STD-1553 to/from Serial (RS-232,422,485), MIL-STD-1553 to/from ARINC-429, ARINC-429 to/from Serial, and Serial to/from Serial.

YOUR OPINION IS IMPORTANT TO US - Please click here and let us know if this type of product can be useful to your company. Any comment is appreciated.

carrier board series was developed to meet the needs of avionic testers for multi-protocol integrated, digital bus testing. Modules may be selected out of a growing list which currently includes MIL-STD-1553, MIL-STD-1760, MMSI, H009, ARINC-429, ARINC-708 / 453, Serial (RS-232 /422/485), Discrete and CAN bus.

is a cost-effective avionics monitoring and simulation application for MIL-STD-1553 & ARINC-429 that streamlines data acquisition, processing and translation into meaningful engineering units, raw data and graphical displays.

Small & Lightweight, the LANCE is a cost-effective hand-held solution for portable data recording and monitoring of MIL-STD-1553 or ARINC-429. Drivers available for design of own application.

*** NEW & IMPROVED DESIGN ***

Portable Analyzer

A ruggedized notebook with built-in MIL-STD-1553 and/or ARINC-429 interface cards for data bus analysis & recording.

An advanced, ruggedized PC104 and PC104+ system in an enclosed, modular casing. The system is appropriate for use in data acquisition and recording for any combination of ARINC-429, MIL-STD-1553, Serial, Discrete or similar types of communication.

*** NEW DESIGN ***

CONDUCTION COOLED

MIL-STD-1553 VME up to 16 channels

The EXC-1553ccVME/Px is a multi-channel (up to sixteen) MIL-STD-1553 interface board for conduction cooled VME systems. Each dual redundant MIL-STD-1553 channel can operate simultaneously as a Bus Controller and up to 32 Remote Terminals and as a Triggerable Monitor.

CONDUCTION COOLED

MIL-STD-1553

The EXC-1553ccPMC/Px is a multi-channel (up to four) MIL-STD-1553 interface board for conduction cooled PCI Mezzanine Card compatible computers. Each dual redundant MIL-STD-1553 channel can operate simultaneously as a Bus Controller and up to 32 Remote Terminals and as a Triggerable Monitor.

CONDUCTION COOLED

ARINC-708 /453

The EXC-708ccPMC is an ARINC-708 /453 interface board for conduction cooled PCI Mezzanine Card systems. The board supports two or four ARINC-708 /453 channels. Each of the channels can be programmed either as transmit or receive. Each channel implements an 8K×16 FIFO and supports polling and/or interrupt driven operation.

*** 2 Channels ***

The EXC-1553PCMCIA/Px is a multi-channel (up to two) MIL-STD-1553 interface board for PCMCIA compatible computers. Each dual redundant MIL-STD-1553 channel can operate simultaneously as a Bus Controller and up to 32 Remote Terminals and as a Triggerable Monitor.

6 ARINC-429 Channels

AND

4 Discrete Channels

The card supports up to six programmable ARINC-429 channels as above for the DAS-429PCMCIA/RT10. In addition the card supports any combination of four bidirectional input and output discrete channels. Input channels are user-selectable to TTL (0-5V) or Avionics (0-32V) voltage levels. Output channels are open collector, capable of handling up to 32V with a maximum sink current of 100 milliamperes each.

The discrete channels contain control I/O registers that are memory mapped and can be accessed in realtime.

PC/104 Plus

Multi protocol

The EXC-4000P104plus is a multiprotocol P104plus interface board for avionics test and simulation applications. Each board holds up to five independent modules including MIL-STD-1553 (single or multi function), MIL-STD-1760 (multi function), MMSI, H009, ARINC-429, ARINC-708 /453, Serial (RS485, RS422 or RS232), CANbus and Discretes. Ideal for embedded systems.

PC/104 Plus

Power Supply

The EXC-PS104P power supply is a high performance DC to DC converter designed for aerospace, military and high-end industrial applications.The EXC-PS104P is ideal for low noise embedded computer systems and is specifically designed to comply with MIL-STD-416D and MIL-STD-704A/B.

FireWire - IEEE 1394b

The EXC-1394PCIe card for the PCI Express bus is an intelligent test and simulation card for interfacing to an IEEE-1394 data bus. It implements a 1394b PHY layer, operating at 100, 200, or 400 Mbps.

The EXC-1394PCIe card supports up to three fully independent nodes; each node having three full duplex ports associated with it, and 2 MB of memory for message data and control registers.

TUTORIAL:

All you wanted to know about connecting to a MIL-STD-1553 bus

Turn up your speakers and click here!

MIL-STD-1553 Couplers

Box Couplers and In-line Couplers are the key components in the fabrication of your bus architecture. Excalibur provides a full line of standard couplers listed in the catalog as well as custom couplers to your requirements. The design for our products was implemented to meet the specification requirements as well as being aesthetically pleasing. If you have a requirement for couplers, Excalibur's products are cost competitive, with delivery from stock.

MIL-STD-1553 Bus Switch

MIL-STD-1553 Bus Switches are devices that enable system architecture to be reconfigured. This reconfiguration is mostly accomplished in the test environment and includes but is not limited to simulation of missile firing and switching in or out a new section of bus interface.
Excalibur Systems is the only manufacturer of devices (ESI-R24/27/28) that contain their own TTL driver circuitry that allows them to be directly driven from a computer.

MIL-STD-1553 Bus Repeater

The ESI-1553RPT MIL-STD-1553 Repeater box was developed for customers who need to extend the existing length of their bus or provide the capability to utilize long stubs or to connect a number of devices to a single stub.
