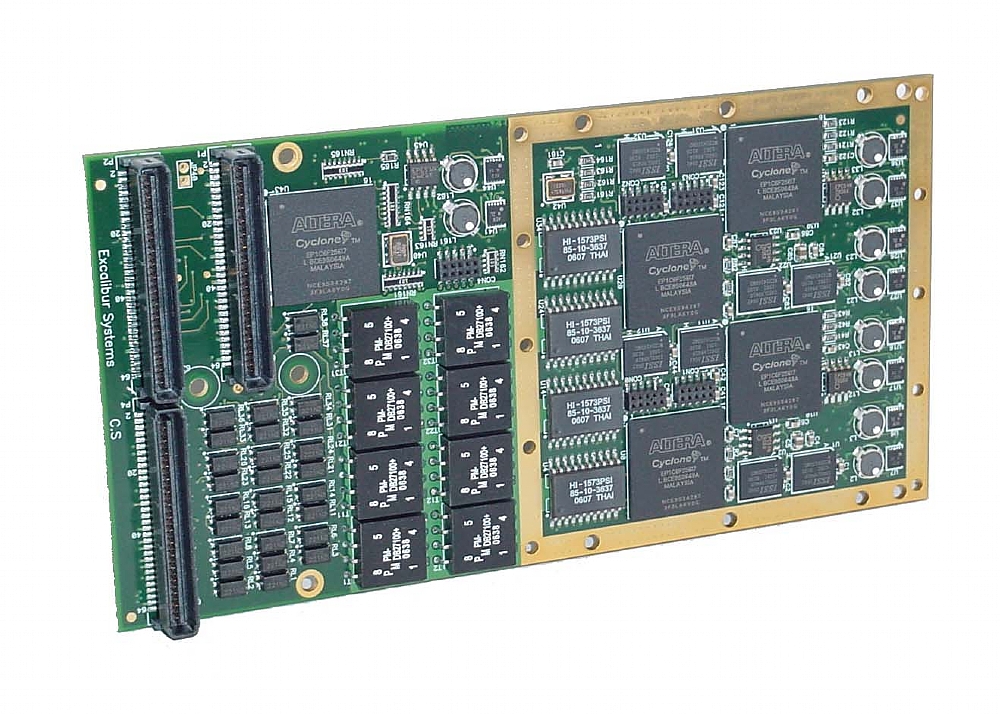

EXC-1553PMC/Px(S) & EXC-1553ccPMC/Px(S)

Excalibur Systems
EXC-1553ccPMC/P4
Excalibur Systems

MIL-STD-1553, conduction cooled, interface board. Supports up to 4 multi function channels.The EXC-1553PMC/Px(S) and EXC-1553ccPMC/Px(S) are multi-channel (up to four) MIL-STD-1553 interface boards for PCI Mezzanine Card compatible computers.

Multi Function:

Each channel operates simultaneously as a Bus controller and/or multiple (up to 32) Remote Terminals, or as a Triggerable Bus Monitor. In addition, error injection (BC and RT modes) and error detection (all modes) are supported on each channel.

Single Function:

Each channel operates either as a Bus Controller, Remote Terminal, or Bus Monitor.

NOTE: PxS is NOT compatible to the MCH family of cards.

The EXC-1553PMC/Px(S) and EXC-1553ccPMC/Px(S) are supplied with C drivers, including source code, and Merlin+ Windows software.



Ordering Information:

Part Number Description
EXC-1553PMC/Px MIL-STD-1553 PMC interface board. Supports up to 4 multi function channels
EXC-1553PMC/PxS MIL-STD-1553 PMC interface board. Supports up to 4 single function channels.
EXC-1553ccPMC/Px  MIL-STD-1553, conduction cooled, interface board. Supports up to 4 multi function channels.
EXC-1553ccPMC/PxS MIL-STD-1553, conduction cooled, interface board. Supports up to 4 single function channels


Note:

“x” specifies the total number of dual redundant 1553 channels ordered: 1, 2, 3 or 4
"-001" added to the end of the part number specifies conformal coating option.
"-E" added to the end of the PMC part number only specifies extended temperature (-40° to +85°C) option.
